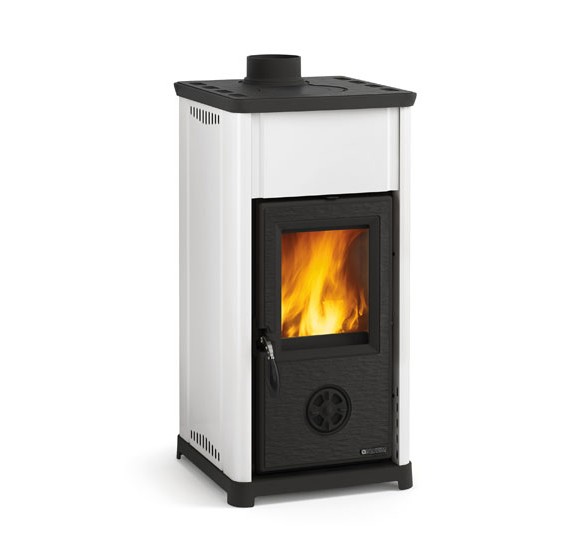

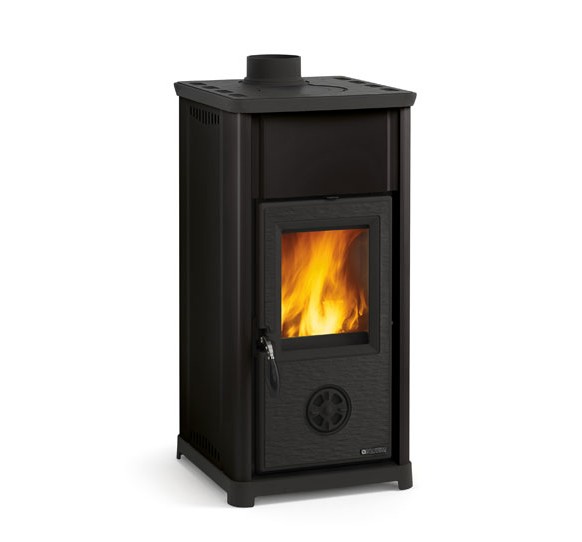

Tea 6,6kW

Enamelled external facing. Base, top and door in cast iron. Ceramic glass resistant up to 750°. Extractable ashbox. Adjustable primary and secondary air, preset tertiary air with post combustion system.

TEA

6,6kW/189m³

Useful thermal power/Heated volume

Features:

Enamelled external facing
Base, top and door in cast iron
Ceramic glass resistant up to 750°
Extractable ashbox
Adjustable primary and secondary air, preset tertiary air
post combustion system

Technical Data

Dimensions (WxHxD)	414x930x471mm
Weight	92kg
Door opening (WxH)	230x232mm
Hearth dimensions (WxHxD)	270x328x315mm
Heatable	172m³
Fumes outlet	120mm
Draught	12Pa
Air Inlet	120mm
Hearth material	Cast Iron
Total thermal power	8,0kW
Useful thermal power	6,0kW
Efficiency	82,0%
Consumption	1,7kg/h
