Svezia New BII 10,6 kW

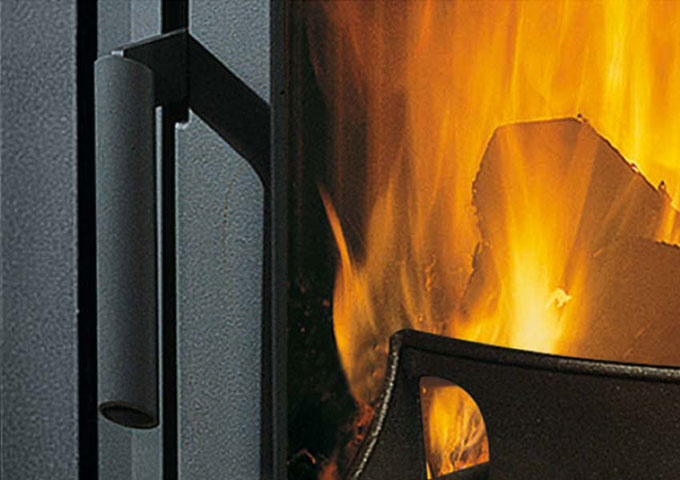

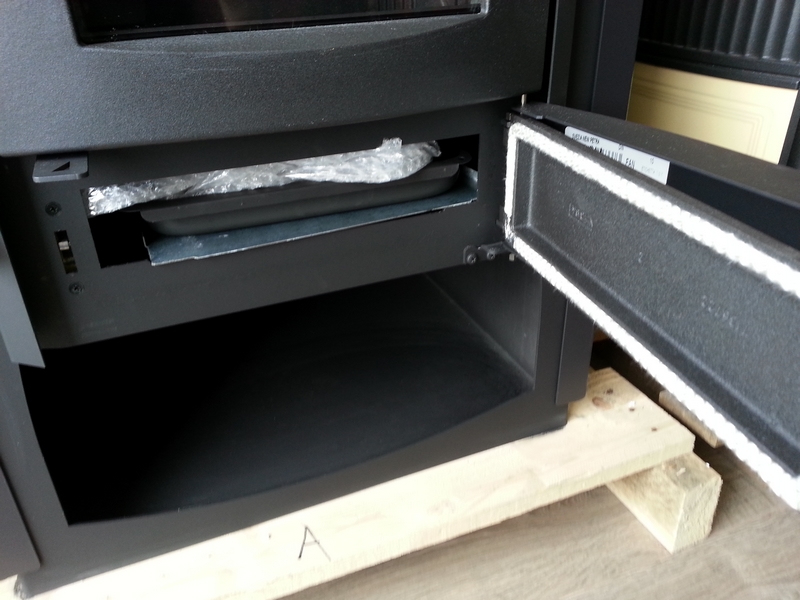

Wood burning stove with wood box and warming dish compartment. External facing of natural stone or majolica Doors of cast-iron. Ceramic glass resistant up to 750°C. Extractable ash drawer.

SVEZIA NEW BII

10,6kW/303m³

Useful thermal power/Heated volume

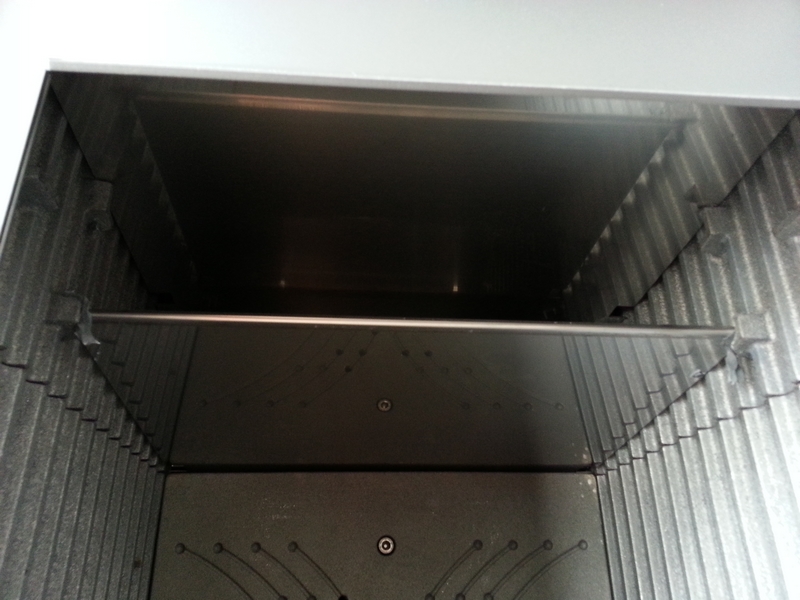

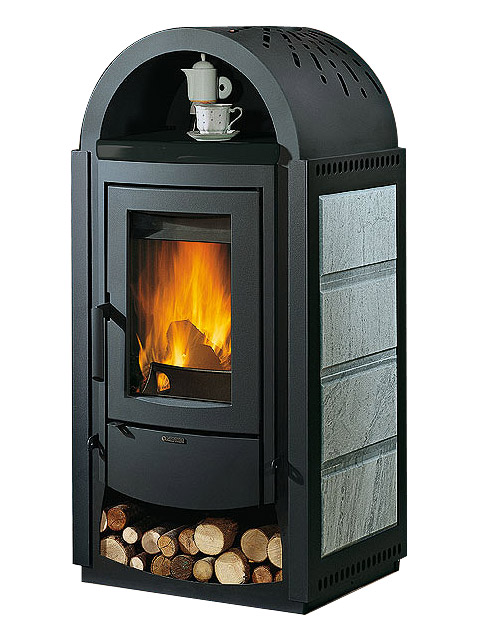

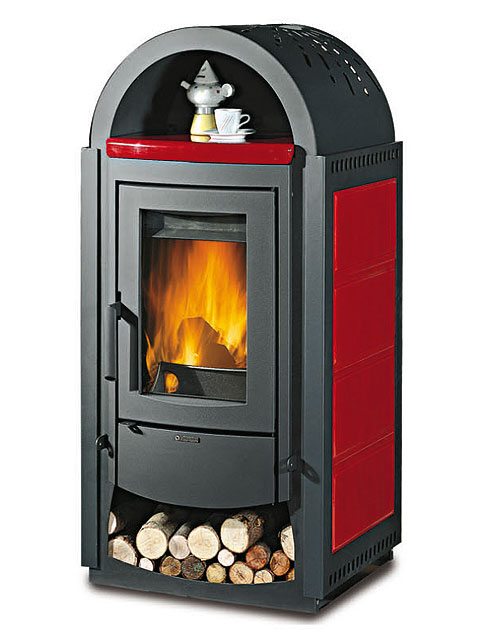

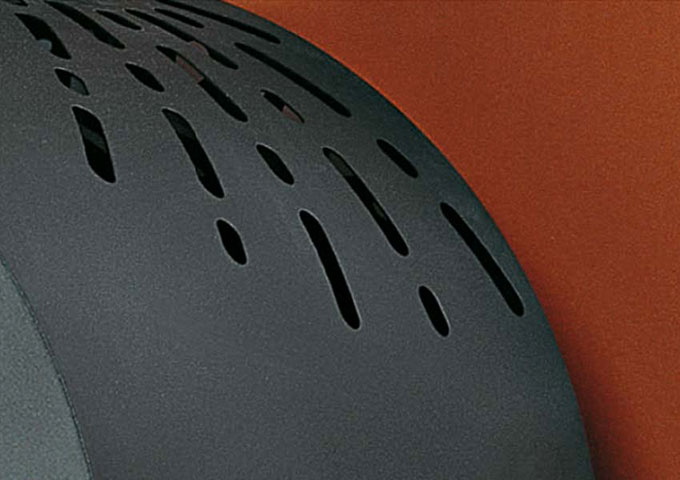

Armony series. Hearth in cast-iron with postcombustion. External facing in bordeaux majolica or natural stone. Enamelled steel dome. Wood-holder. Doors of cast-iron. Vertical flame hearth. Food warmer. Ceramic glass resistant up to 750°C.

Technical Data

Dimensions (WxHxD)	607x1254x554mm
Weight	BO:191/PT:203kg
Hearth opening (WxH)	300x310mm
Hearth dimensions (WxHxD)	377x340x385mm
Heatable	303m³
Fumes outlet	150mm
Air Inlet	120mm
Hearth material	Cast Iron
Total thermal power	12,5kW
Useful thermal power	10,6kW
Efficiency	85,1 %
Consumption	2,9kg/h
