ORIANA
8,3kW/238m3
Useful thermal power/Heated volume

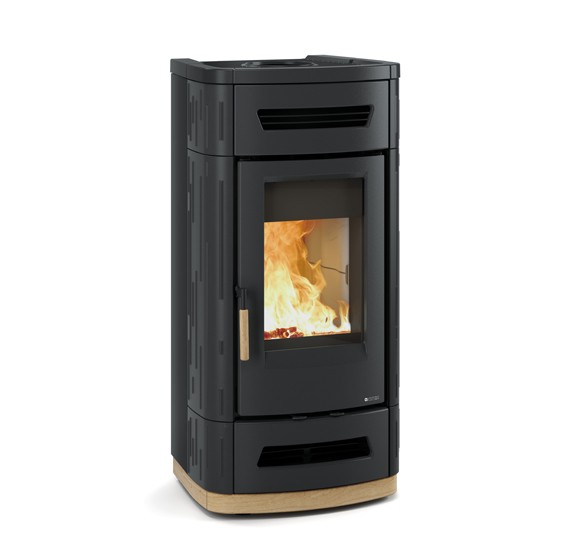

Oriana is a contemporary style wood burning stove included in the new range of Prestige line products by La Nordica This model has a maximum output of 9.8kW with an efficiency of 85% giving this stove the ability to provide sufficient heat to medium sized rooms. External air can also be connected to the appliance to allow constant fresh air to fuel the combustion chamber. Oriana Ghisa is manufactured from cast iron with a large viewing window, an ergonomic handle is also included for easy operation. Slightly taller than other Oriana models in the range, the Ghisa model is finished in an enamelled black cast iron covering.
Features:

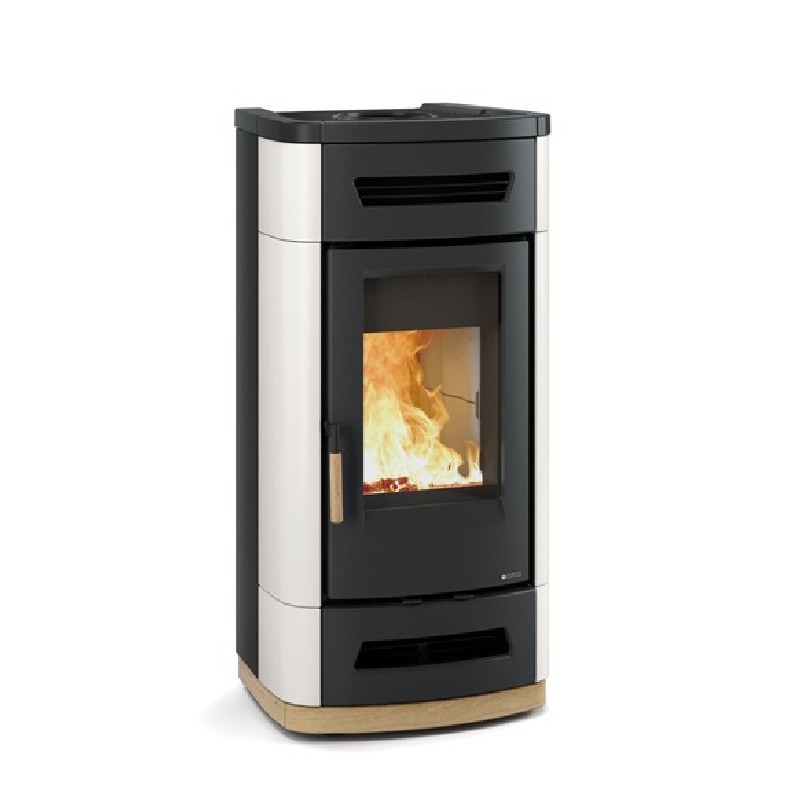

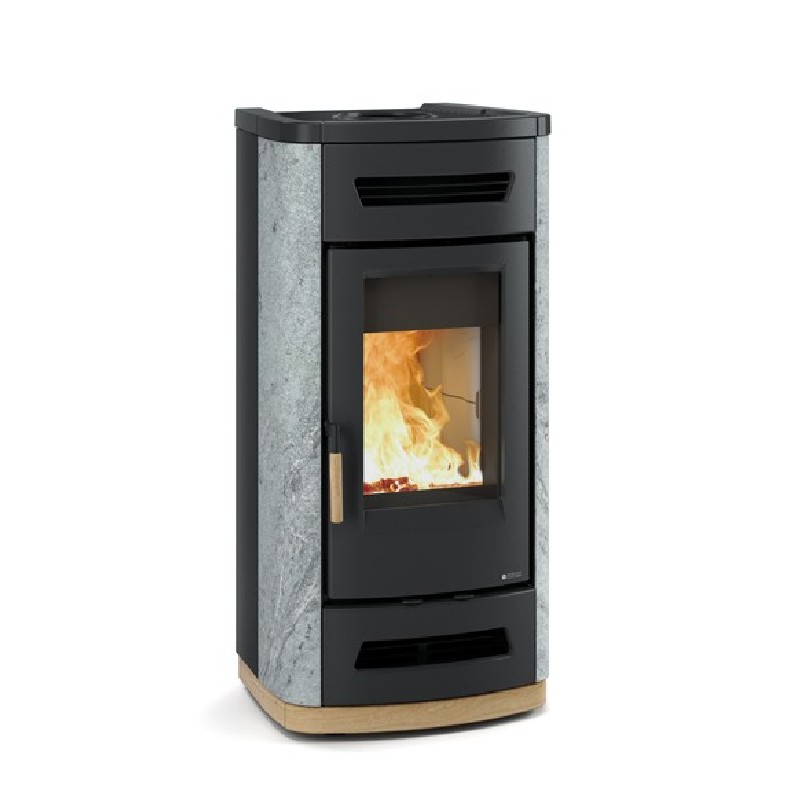

- Cast iron or natural stone or majolica coating according to the model
- Removable ash drawer
- Internal lining of the hearth in cast iron-Nordiker
- Door in thick enamelled cast iron
- Front panels and head in enamelled cast iron
- New wireless ventilation control unit
- Wireless Thermostat (standard), allows ventilation/ducting to be turned on or off depending on the temperature set on the machine
- Large vertical flame hearth for an optimal view of the fire
- Front room ventilation with bottom outlet. Possibility to convert the stove - during installation - into a ducted product with a single rear 100 mm outlet.
ATTENTION: One configuration excludes the other, therefore the stove can work with either ventilation only or ducting only
Technical Data
| Dimensions (WxHxD) | 635x1314x557mm |
| Weight | IR239Kg-PT264Kg-BIN228Kg |
| Heatable | 238m3 |
| Fumes outlet | 150mm |
| Draught | 12Pa |
| Air inlet | 120mm |
| Hearth material | Cast-Iron+Nordiker |
| Total thermal power | 9,8kW |
| Useful thermal power | 8,3kW |
| Efficiency | 85,0% |
| Consumption | 2,3kg/h |
