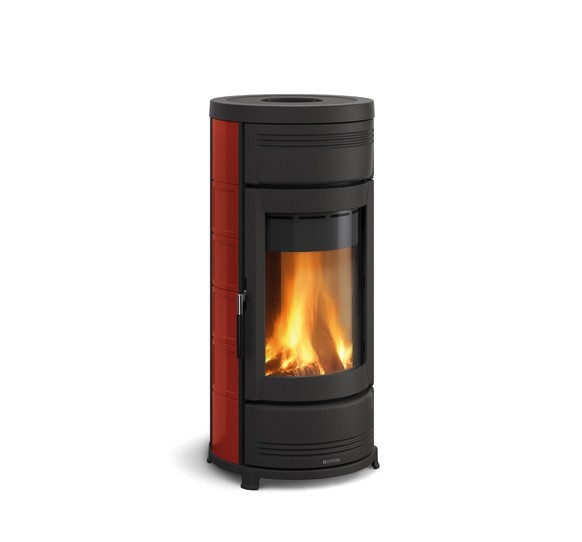

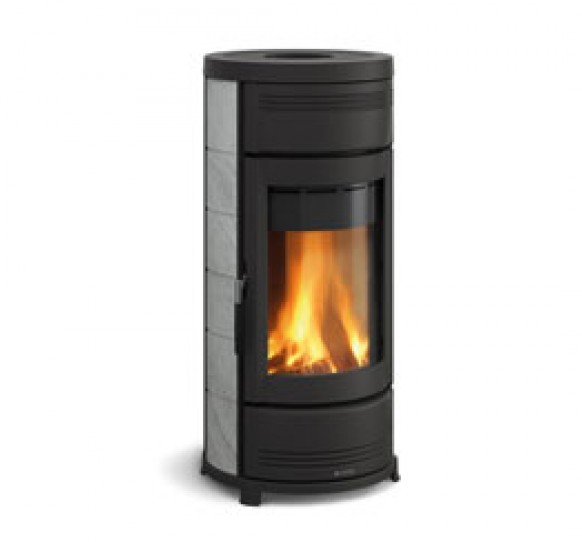

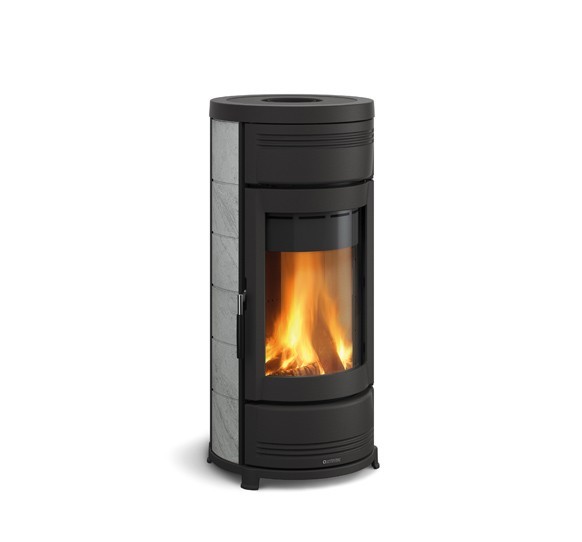

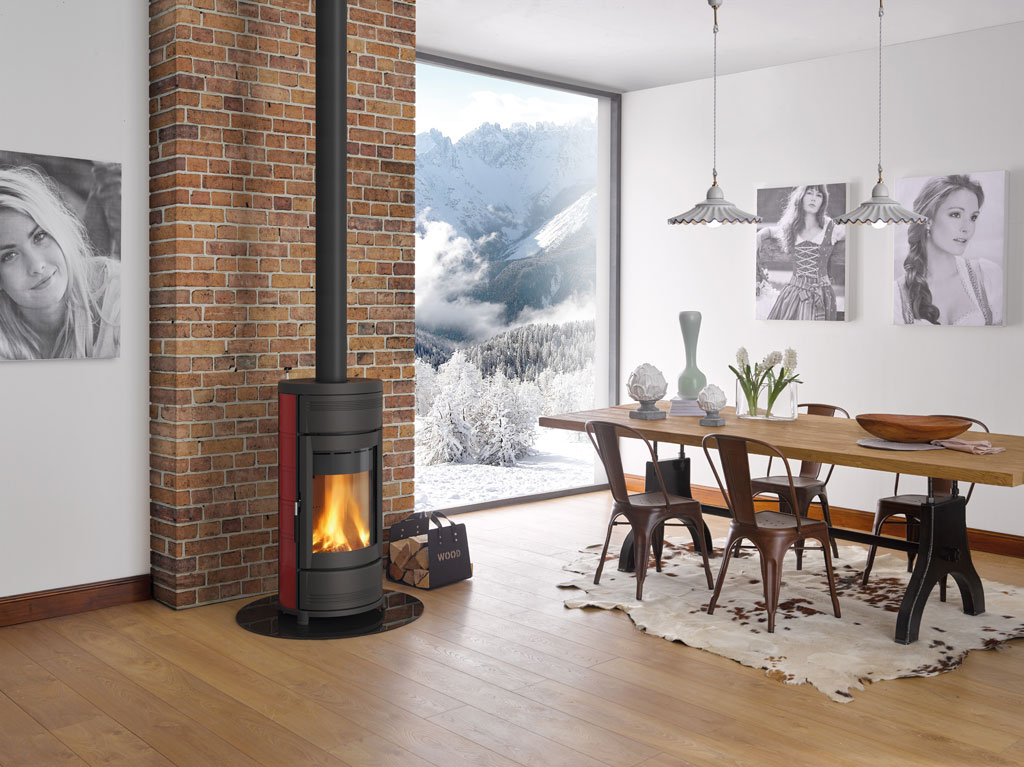

HELGA EVO
7,3kW/209m
Useful thermal power/Heated volume
Features:
- External facing in majolica or in natural stone
- Curved cast iron firedoor
- Internal facing of the hearth in cast iron and nordiker™
- post combustion
- Vertical flame hearth
- Base and top in enamelled cast iron
Technical Data
| Dimensions (WxHxD) | 524x1122x509mm |
| Weight | 165/PT183kg |
| Door opening (WxH) | 327x360mm |
| Hearth dimensions (WxHxD) | 318x415x370mm |
| Heatable | 209m3 |
| Fumes outlet | 130mm |
| Draught | 12Pa |
| Air inlet | 100mm |
| Hearth material | Cast-Iron+Nordiker |
| Total thermal power | 8,5kW |
| Useful thermal power | 7,3kW |
| Efficiency | 86,8% |
| Consumption | 2,0kg/h |
