Flo 8,3kw

External facing in majolica. Extractable ash drawer. Internal facing of the hearth in cast iron and ironker with post combustion. Door and grille in cast iron. Vertical flame hearth. Room ventilation.

FLO

8,3kW/238m³

Useful thermal power/Heated volume

Features:

Top design series
External facing in majolica
Extractable ash drawer
Internal facing of the hearth in cast iron and ironker
post combustion
Door and grille in cast iron
Vertical flame hearth

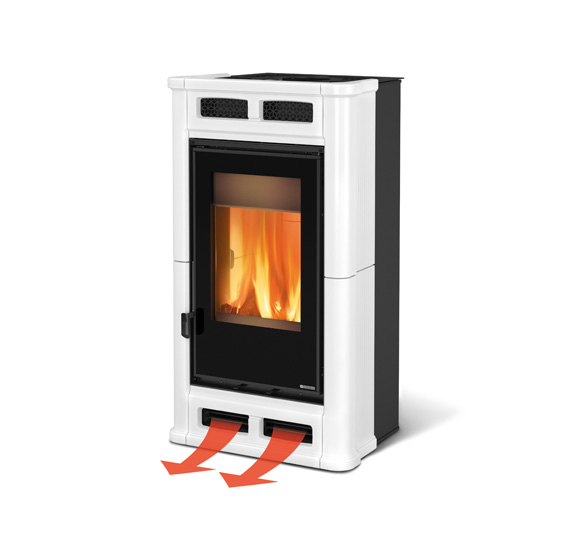

Room ventilation

Technical Data

Dimensions (WxHxD)	678x1200x560mm
Weight	194kg
Door opening (WxH)	326x347mm
Hearth dimensions (WxHxD)	300x400x360mm
Heatable	238m³
Fumes outlet	150mm
Draught	12Pa
Air inlet	120mm
Hearth material	Cast-Iron+Nordiker
Total thermal power	9,8kW
Useful thermal power	8,3kW
Efficiency	85,0%
Consumption	2,3kg/h
