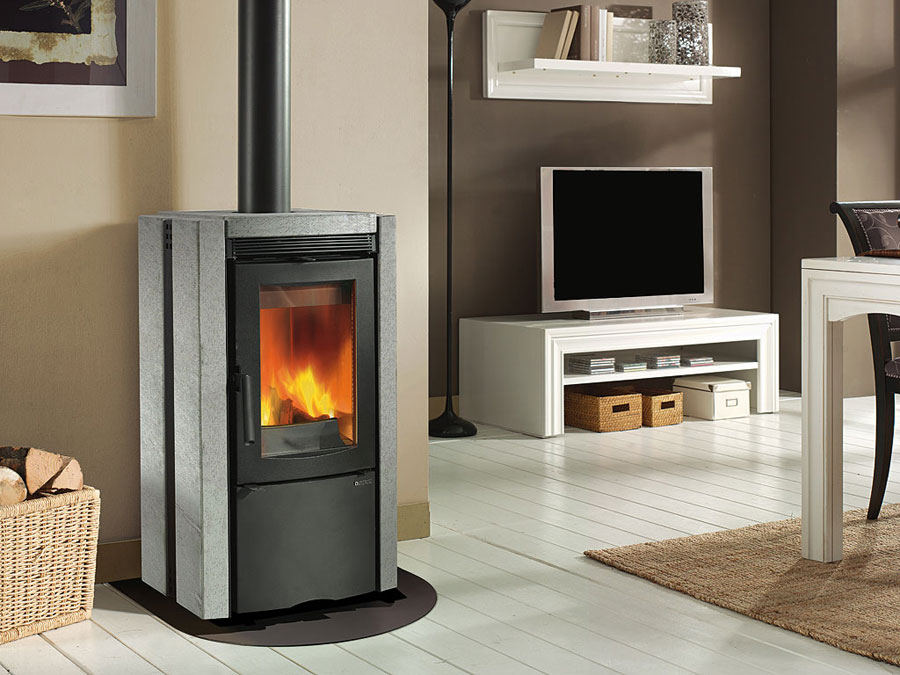

ESTER BII

7,5kW/215m3

Useful thermal power/Heated volume

External facing of steel and majolica. Doors of cast-iron. Ceramic glass resistant up to 750°C. Wood-holder.

Technical Data

Dimensions (WxHxD) 540x950x496mm
Weight 243kg
Door opening (WxH) 300x415mm
Hearth dimensions (WxHxD) 295x390x300mm
Heatable 215m3
Fumes outlet 130mm
Draught 11Pa
Air Inlet 120mm
Hearth material Cast Iron+Nordiker
Total thermal power 9,4kW
Useful thermal power 7,5kW
Efficiency 80,0%
Consumption 1,9kg/h
