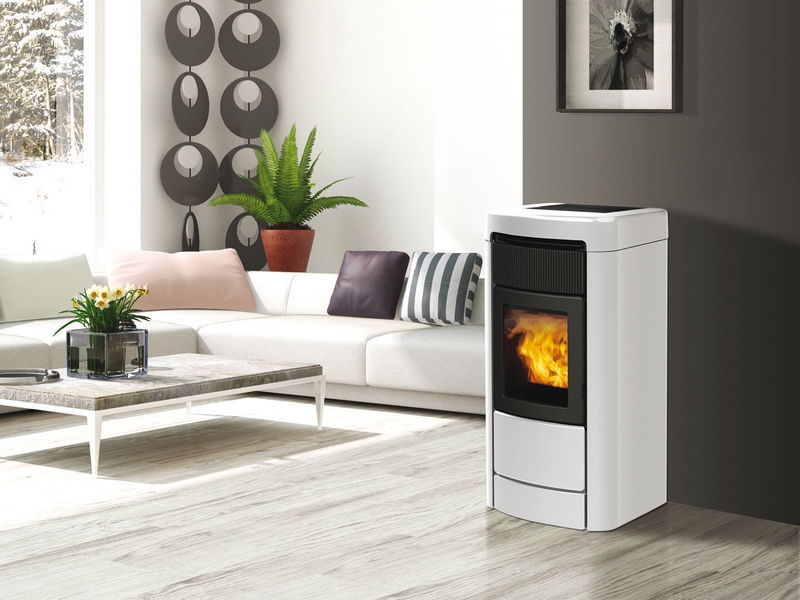

LAYMA IDRO
22,5kW/585m3
Useful Thermal Power/Heated Volume
Pellet thermo-stove produces hot water to feed radiators and under floor heating panels throughout the house.
• Steel combustion chamber.
• Synoptic panel
• Smoke outlet 80mm rear
• Daily/weekly program
• Deactivatable front hot air ventilation
• Included closed expansion tank
Covering with steel, top and front panel ceramic in three colours: opaque white, dark grey and bordeaux.
The hydraulic kit R – R2 - RW has to be installed to ensure a correct operation.
Technical Caracteristics
| Dimensions (WxDxH) | 605x620x1215mm |
| Weight | 260kg |
| Heatable | 585m3 |
| Fumes Outlet | 80mm |
| Air Inlet | 40mm |
| Boiler Content | 20lt |
| Total thermal power | 24,3kW |
| Useful thermal power | 22,5kW |
| Power given to water | 20,0kW |
| Efficiency | 92,7% |
| Consumption | 1,1-5,1kg/h |
| Pellet Tank | ~37kg |
