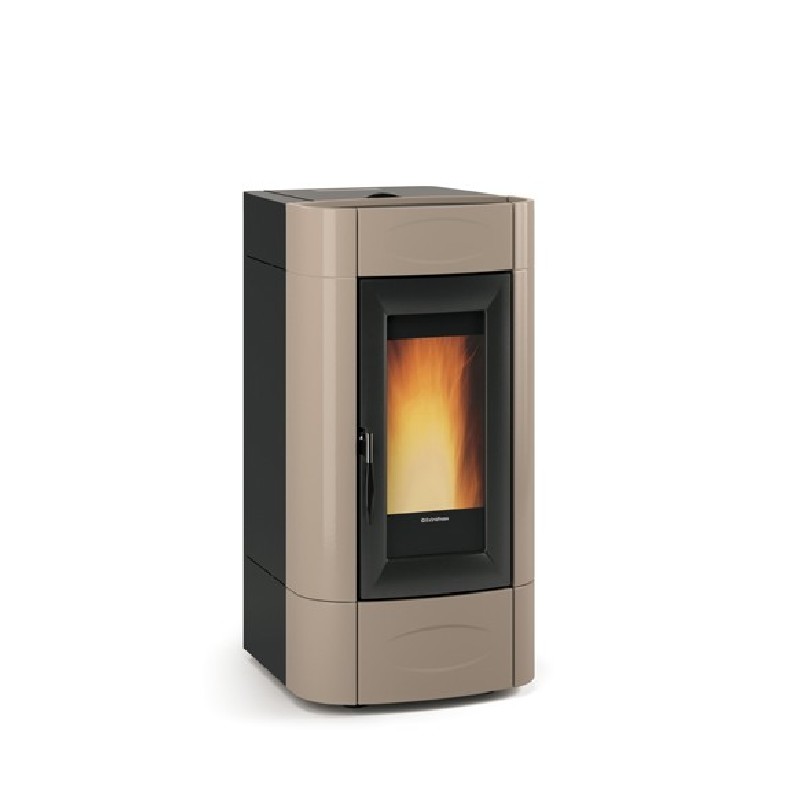

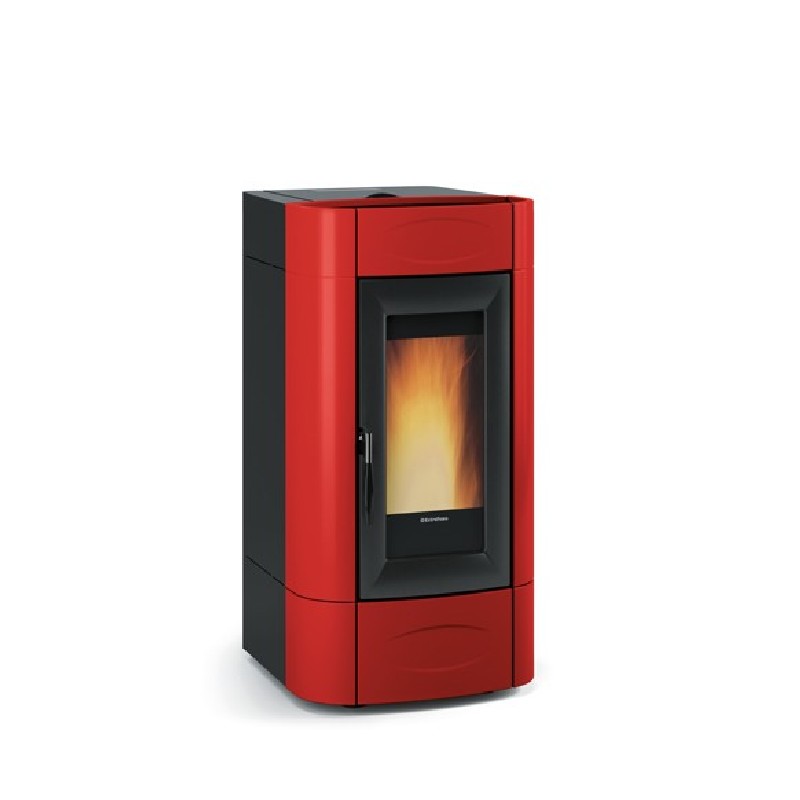

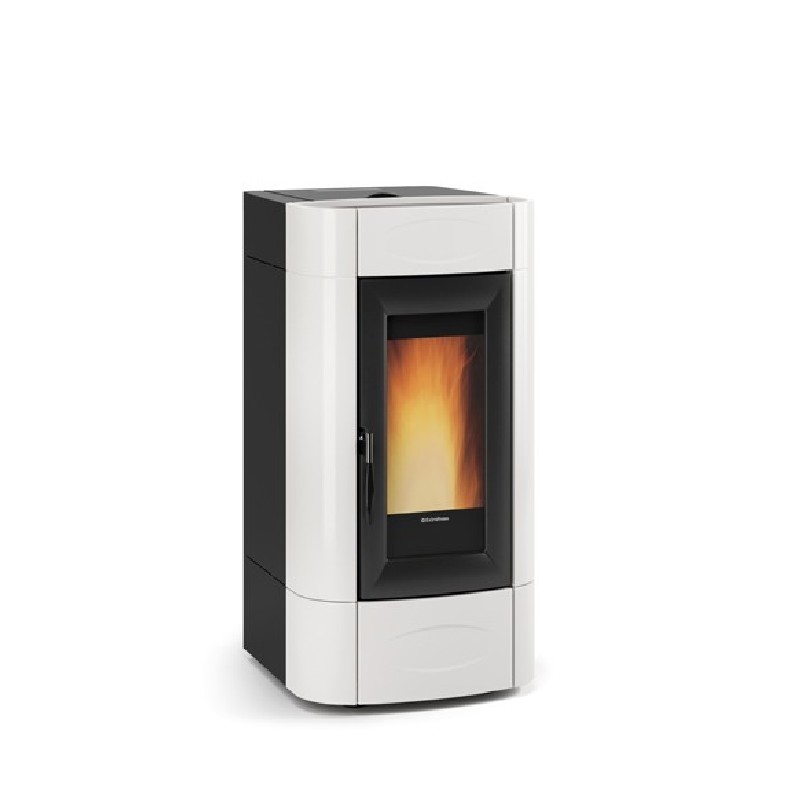

ISIDORA IDRO H16
5,6-18,7 kW/536m3
Useful Thermal Power/Heated Volume
Hermetic pellet thermo-stove.
Features:
- Tube bundle heater exchanger with turbulators (manual cleaning)
- Combined coating of majolica and painted sheet metal
- Wide view of the flame
- Cast iron door and brazier
- Removable ash drawer
- Airtight tank
- Ceramic ignition, longer life than traditional ignition
- Probe in combustion chamber
- Ventilation can be adjustable or totally off
- Automatic cleaning with rack movement by brushless motor
- PWM pump (6 m head, anti-condensation management)
- Pressure transducer and visible pressure on the display
- Brushless loading gear motor
- Black mask display
- IR Touch remote control with back light display
Technical Data
| Dimensions (WxHxD) | 596x1165x708 mm |
| Weight | 227kg |
| Heatable | 536m3 |
| Fumes outlet | 100mm |
| Draught | 3-5Pa |
| Air Inlet | 60mm |
| Hydraulic Connections | 1/2’’ |
| Boiler Content | 27lt |
| Total thermal power | 6,1-20,2kW |
| Useful thermal power | 5,6-18,7kW |
| Power given to water | 4,3-16,0kW |
| Efficiency | >91,5% |
| Consumption | 1,3-4,2kg/h |
| Pellet tank | ~33kg |
