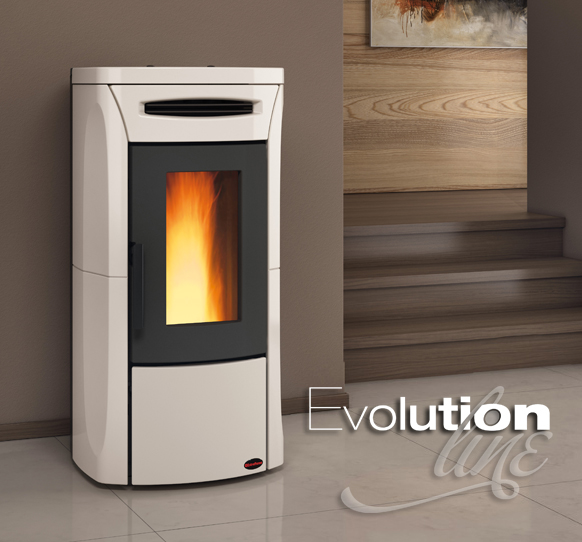

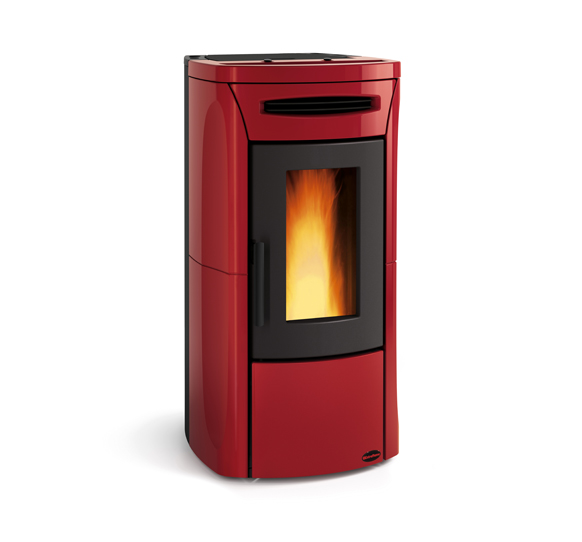

FIANDRA IDRO

4,8-17,6kW/505m3

Useful Thermal Power/Heated Volume



Hermetic pellet thermo-stove for passive houses or low energy houses.

Features:

  • Majolica covering
  • Thermostove with a "sealed chamber" and an "airtight" tank without a flow sensor on the air inlet
  • Control with multifunctional "handheld device"
  • New electronics with the possibility of connecting the system expansion card
  • Ceramics glow plug with the latest generation ignition system
  • High efficiency circulator with PWM control, directly from the remote control
  • Combustion control with probe in combustion chamber
  • Automatic brazier cleaning system with Brushless motor
  • Forced ventilation totally removable
  • Chimney compensation automatic system

Technical Data

Dimensions (WxHxD) 570x1145x622mm
Weight 227kg
Heatable 505m3
Fumes outlet 100mm
Draught 2-10Pa
Air Inlet 60mm
Hydraulic Connections 3/4" F
Boiler Content 16lt
Total thermal power 5,2-19,6kW
Useful thermal power 4,8-17,6kW
Power given to water 3,7-14,1kW
Efficiency >90%
Consumption 1,1-4,0kg/h
Pellet tank ~30kg
