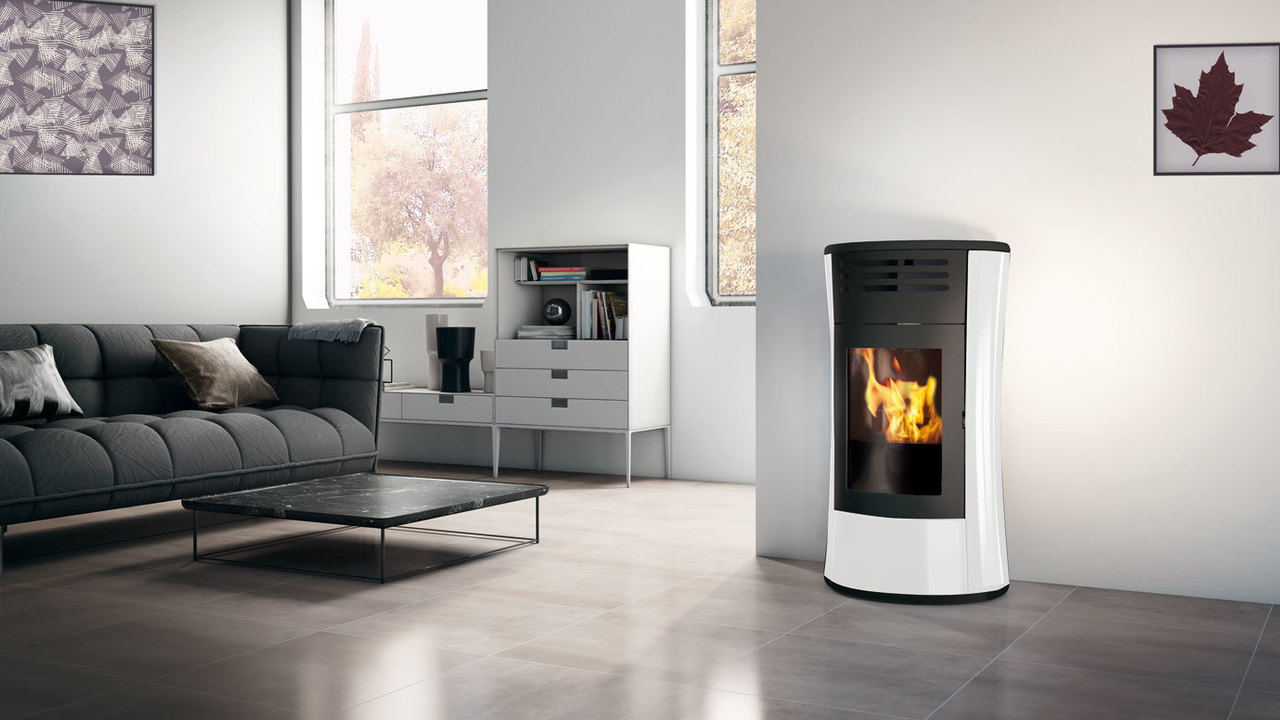

CHERIE UP H

16,2kW/420m3

Useful Thermal Power/Heated Volume

Pellet thermo-stove produce hot water to feed radiators and under floor heating panels throughout the house and they can be combined with solar panels to create a modern heating system.
With ceramic sides, top and insert color opaque white.
Produces hot air (can be deactivated) to heat the room where it is installed.

  • Innovative technology: The Leonardo System detects the main parameters of combustion (type of pellet, atmospheric conditions, chimney flue conditions) to guarantee optimal operation.
  • Cast iron and steel combustion chamber.
  • Kit with built-in circulating pump, expansion vessel and safety valve
  • Remote control with display
  • hot air ventilation (modulable and deactivatable)



Technical Data

Dimensions (WxDxH) 620x570x1150mm
Weight 230kg
Heatable 420m3
Fumes outlet 80mm
Draught 1-10Pa
Air Inlet 60mm
Hydraulic Connections 3/4" F
Boiler Content 12lt
Total thermal power 17,7kW
Useful thermal power 16,2kW
Power given to water 11,8kW
Efficiency >91,6%
Consumption 1,0-3,7kg/h
Pellet tank ~29kg

OPTIONAL

  • Kit Wi-Fi
  • GSM, allows for switching the stove on/off via mobile phone
  • Produces sanitary hot water with optional accessories
  • Telephone combiner for switching on and off remotely.
