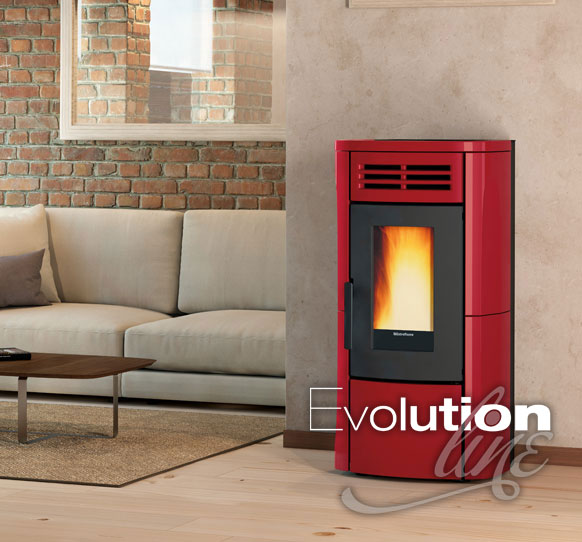

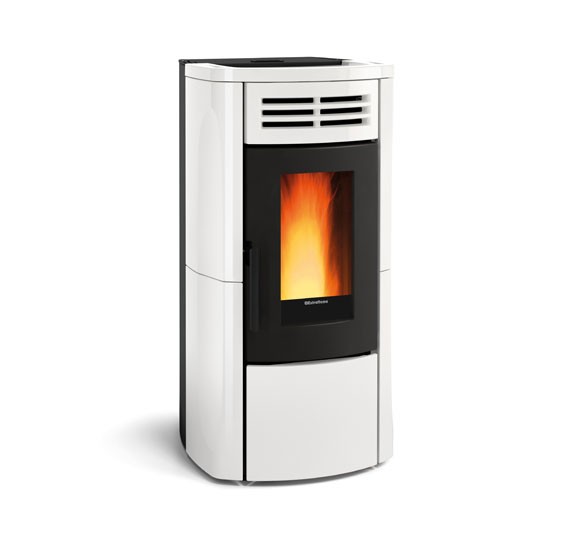

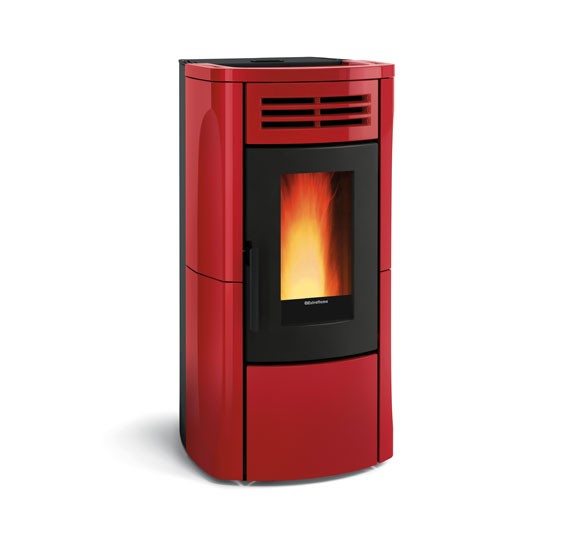

TERRY PLUS

3,5-12,1kW/347m3

Useful thermal power/Heated Volume

Hermetic pellet stove with ducting system and two different outlets. Specially designed for passive or low energy consumprion houses.

Features:

  • Sealed combustion chamber and hermetic tank
  • Ceramic ignition plug
  • Self-cleaning cast-iron brazier with Brushless motor
  • Three independent centrifugal motors: 1 dedicated to front ventilation(400 m3/h) and 2 dedicated to ducting system (up to 8 meters each)
  • Weekly programmer dedicated to ducting system - 4 adjustable schedules
  • Wide front extractable ash drawer
  • Multifunction radio remote control

Technical Data

Dimensions (WxHxD) 569x1151x598mm
Weight 206kg
Heatable 347m3
Fumes outlet 80mm
Draught 1-10Pa
Air Inlet 50mm
Ducting Outlet 2 x 80mm
Total thermal power 3,8-12,8kW
Useful thermal power 3,5-12,1kW
Efficiency 92,0-94,0%
Consumption 0,8-2,66kg/h
Pellet tank ~29kg
