Layma 14,3kW

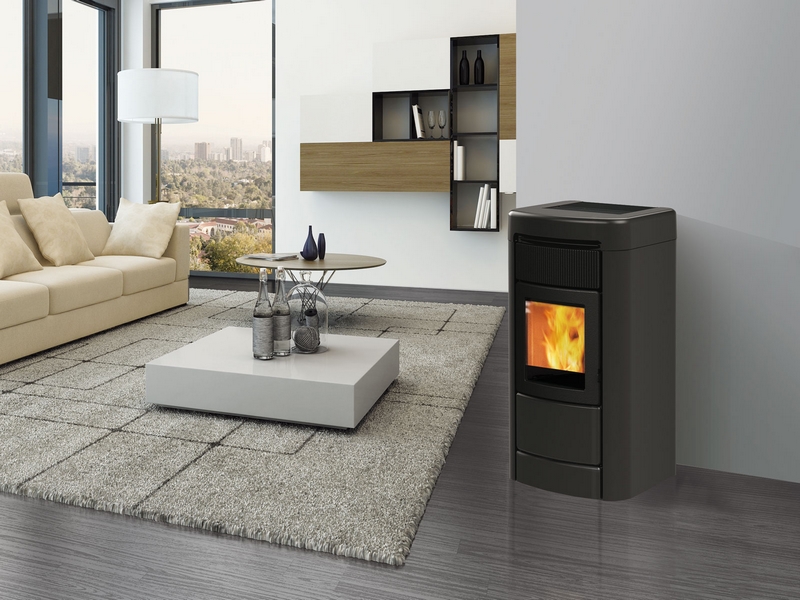

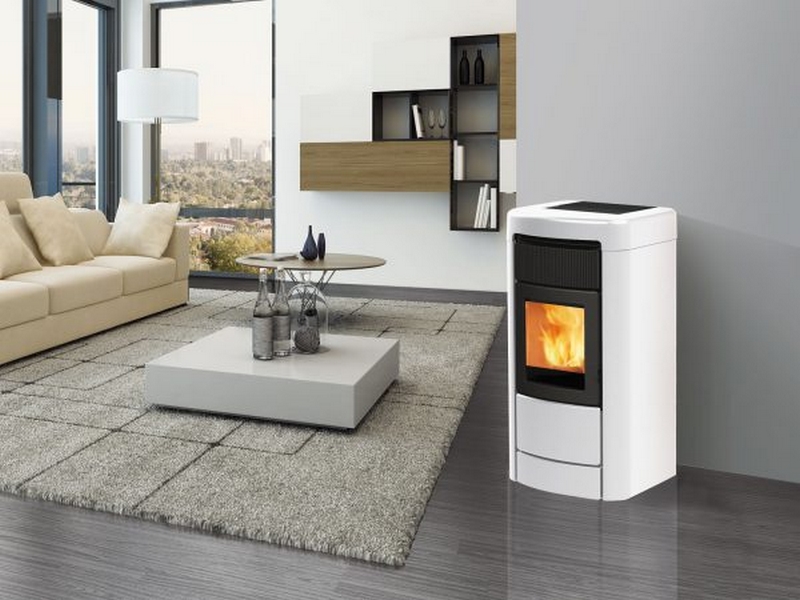

Pellet burning stove for ducting hot air to another room (optional kit). Covering with steel, top and front panel ceramic in three colours: opaque white, dark grey and bordeaux.

LAYMA

14,3kW/375m³

Useful Thermal Power/Heated Volume

Pellet burning stove for ducting hot air to another room (optional kit).

• Scamolex combustion chamber
• Synoptic panel
• Smoke outlet O 8 cm rear
• Daily/weekly program
• Deactivatable front hot air ventilation

Covering with steel, top and front panel ceramic in three colours: opaque white, dark grey and bordeaux.

Technical Characteristics

Dimensions (WxDxH)	605x620x1215mm
Weight	180kg
Heatable	375m³
Fumes outlet	80mm
Air Inlet	40mm
Total thermal power	15,9kW
Useful thermal power	14,3kW
Efficiency	90%
Consumption	3,3kg/h
Pellet Tank	30kg
