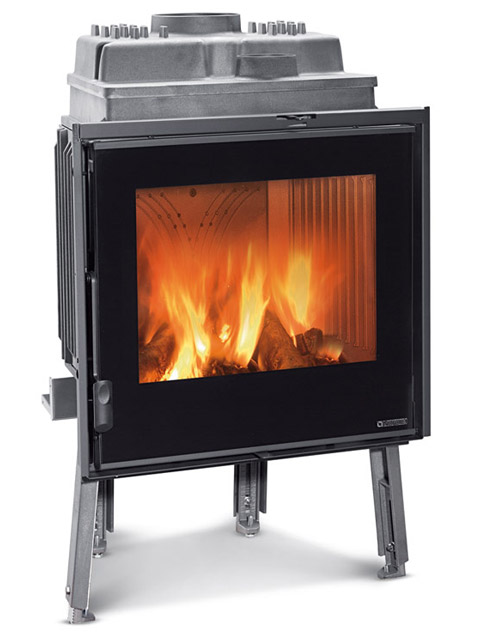

Focolare 60 Piano EVO 8,5kW

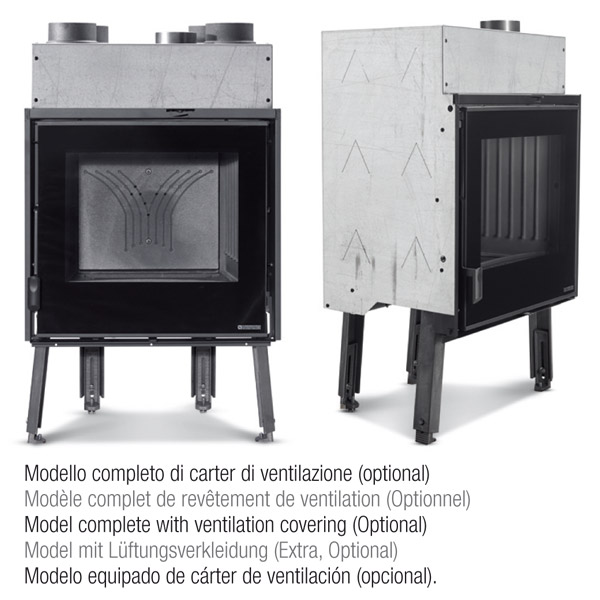

LA NORDICA - EXTRAFLAME fireplaces are made using optimal quality materials, wich provide a high thermic performance combined with reduced wood consumption. Model complete with ventilation covering (Optional).

FOCOLARE 60 PIANO EVO

8,5kW/243m³

Useful Thermal Power/Heated Volume

The fireplaces LA NORDICA-EXTRAFLAME are made using optimal quality materials, wich provide a high thermal performance combined with reduced wood consumption.

Features:

Completely built in radiant G20 cast iron

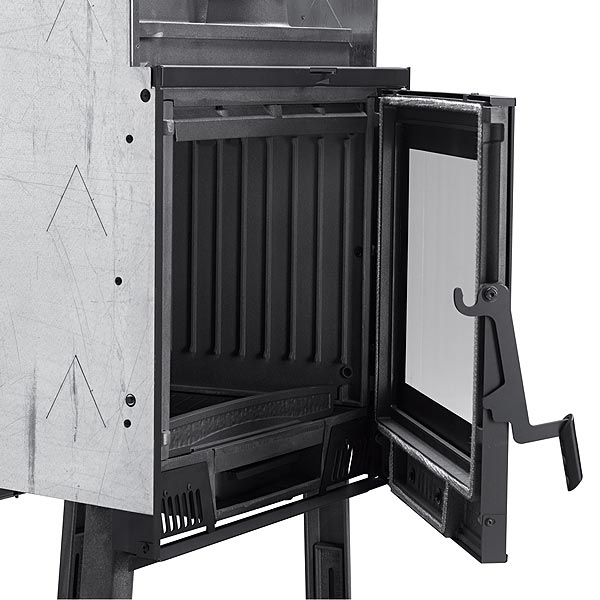

Extractable ash drawer
Cast iron of 8 and 16mm
Ceramic glass heat-resistant 750°C
Possibility to take from outside the combustive air
Adjustable primary and secondary air, preset tertiary air
Post combustion system
Ventilation optional

Technical Data

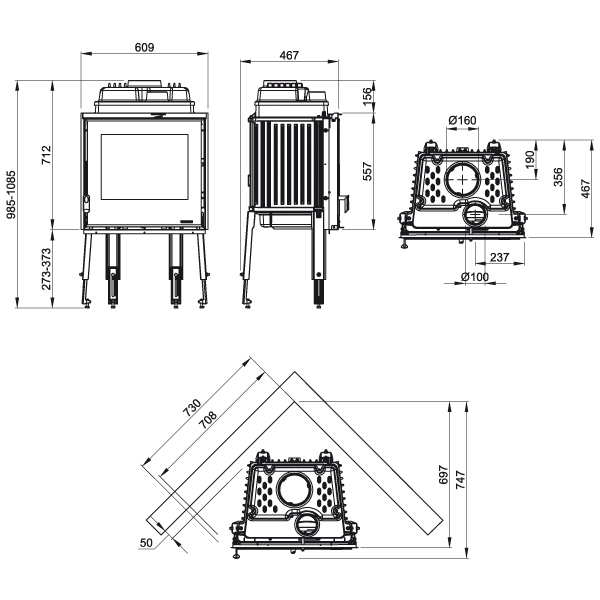

Dimensions (WxHxD)	609x985-1085x467mm
Weight	125kg
Door opening (WxH)	465x320mm
Hearth dimensions (WxHxD)	425x365x285mm
Heatable	243m³

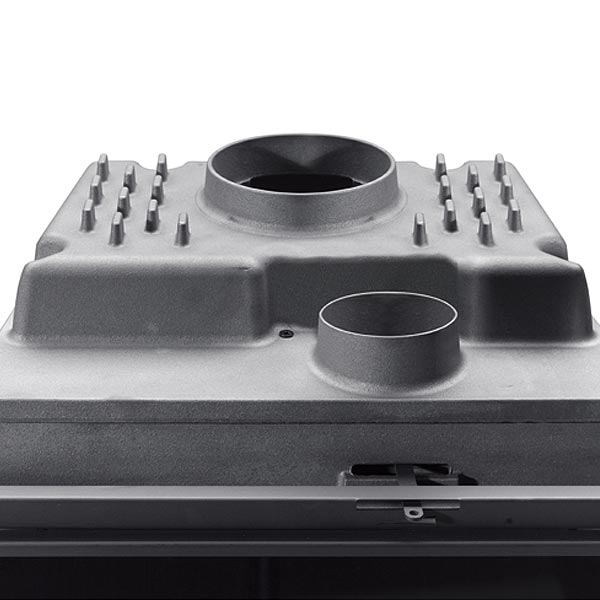

Fumes outlet	160mm
Draught	10Pa
Air inlet	100mm
Hearth material	Cast Iron
Total thermal power	10,0kW
Useful thermal power	8,5kW
Efficiency	85,1%
Consumption	2,3kg/h
