KUBICALOR ECOSTAR FLAT

9,6kW/250m3

Useful thermal power/Heatable Volume

Can be mounted without the aid of builders. Consumes only 2,3 kg/h of wood. Has a smoke outlet with a 20cm diameter. For heights greater than 4 metres, works with a 16 cm diameter flue (request optional reducer). Hearth made entirely of cast iron with a large glass ceramic glass door. Equipped with a smoke damper and an automatic, removable opening device to facilitate chimney flue cleaning. Can be fitted with any type of covering.

Technical Data

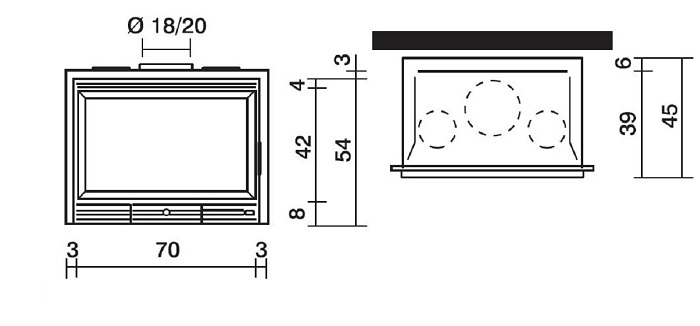

Dimensions (WxHxD) 760x540x450mm
Weight 153kg
Door opening (WxH) 650x320mm
Heatable 250m3
Fumes outlet 200mm
Ducting outlet 2x140mm
Hearth material(s) Cast Iron
Total thermal power 10,7kW
Useful thermal power 9,6kW
Efficiency 89,5%
Consumption 2,3kg/h
