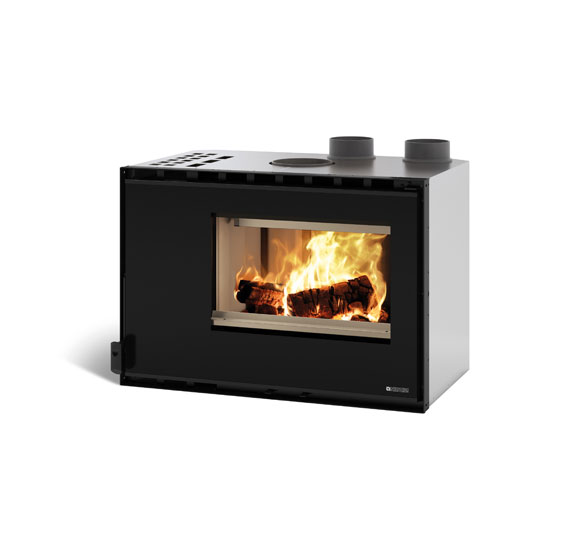

Inserto 80 High Pressure 7,9 kW

Wood burning insert supplied with ducting ventilation system. Extractable ashbox. Hearth in cast-iron and nordiker. Ceramic glass resistant up to 750°. Door in cast iron. High Pressure Centrifugal fan.

INSERTO 80 HIGH PRESSURE

7,9kW/226m³

Useful thermal power/Heated Volume

LA NORDICA-EXTRAFLAME Inserts: reliable. Practical, silent and ecological, they enable to heat wide areas in very short time

Features:

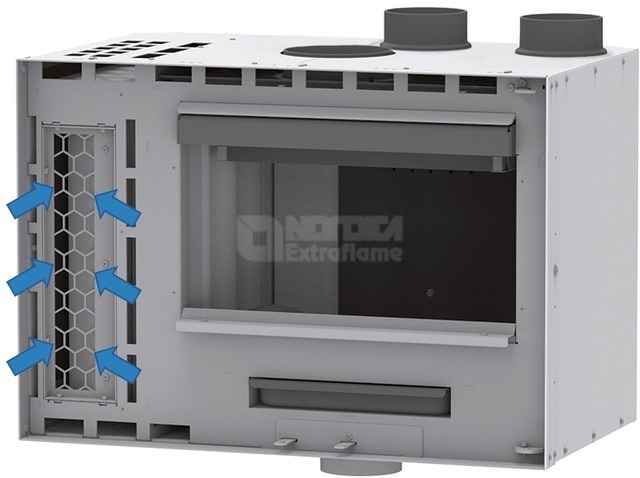

Standard ventilation system that can be channelled
Extractable ashbox
Hearth in cast-iron and nordiker
Ceramic glass resistant up to 750°
Door in cast iron

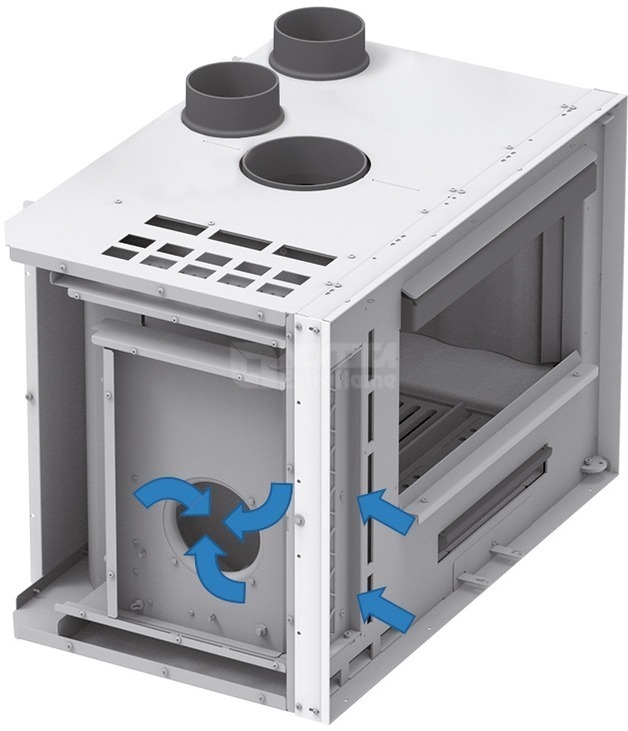

High Pressure Centrifugal fan
Digital adjustment control unit with remote control
Adjustable primary and secondary air, preset tertiary air
Post combustion system

Technical Data

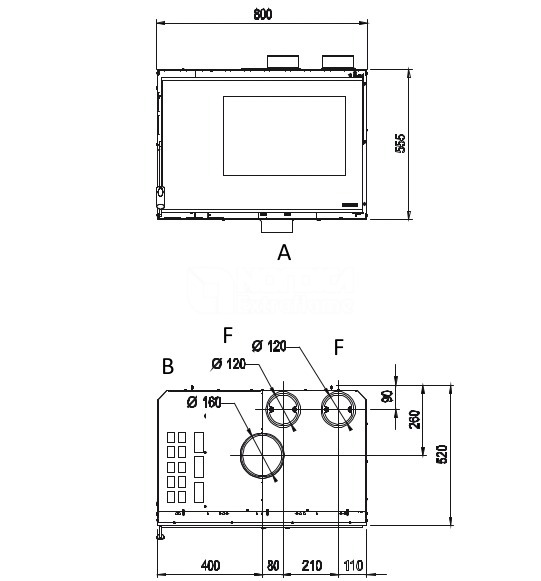

Dimensions (WxHxD)	800x555x520mm
Weight	128kg
Door Opening	335x245mm
Hearth Dimensions	300x320x360mm
Heatable	226m³
Fumes Outlet	130mm
Draught	12Pa
Air Inlet	120mm (opt.)
Hearth material(s)	Cast Iron+Nordiker
Total Thermal Power	9,6kW
Useful Thermal Power	7,9kW
Efficiency	82,4%
Consumption	2,3kg/h
