INSERTO 80 CRYSTAL EVO 2.0 - VENTILATO
7,4kW/212m3
Useful thermal power/Heatable Volume
La NORDICA-EXTRAFLAME Inserts: reliable. Practical, silent and ecological, they enable to heat wide areas in very short time.
Features:

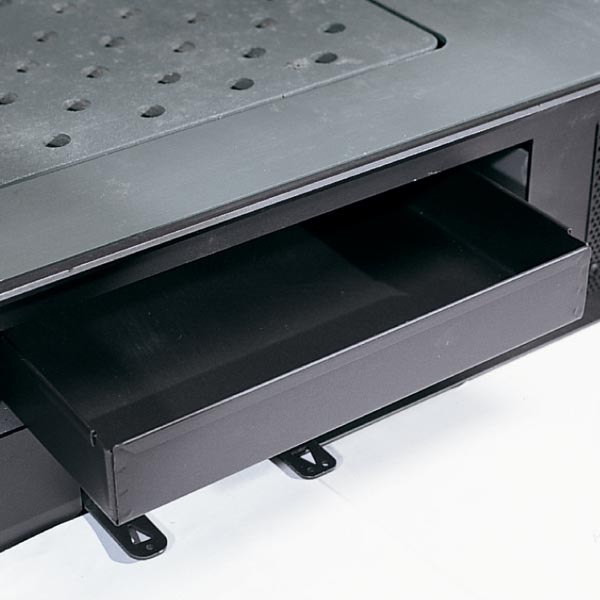

- Extractable ash drawer

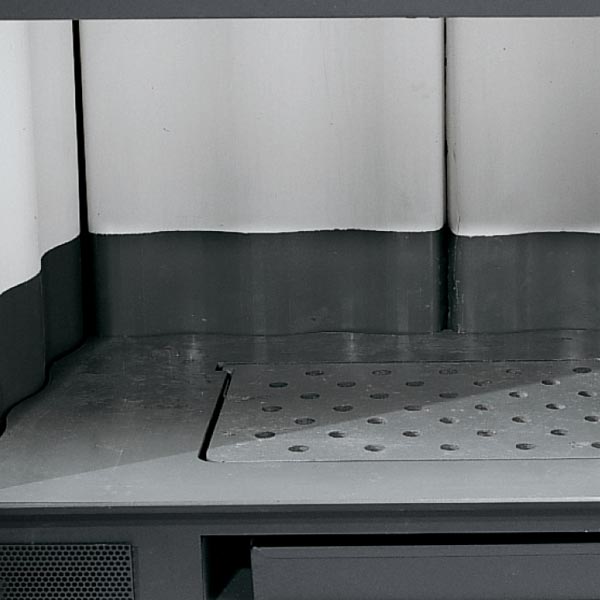

- Hearth in cast-iron and Nordiker
- Ceramic glass heat-resistant 750°C
- Cast iron door
- Standard tangential fans
- Adjustable primary and secondary air
- Possibility to change by yourself the door opening direction from right to left
Technical Data

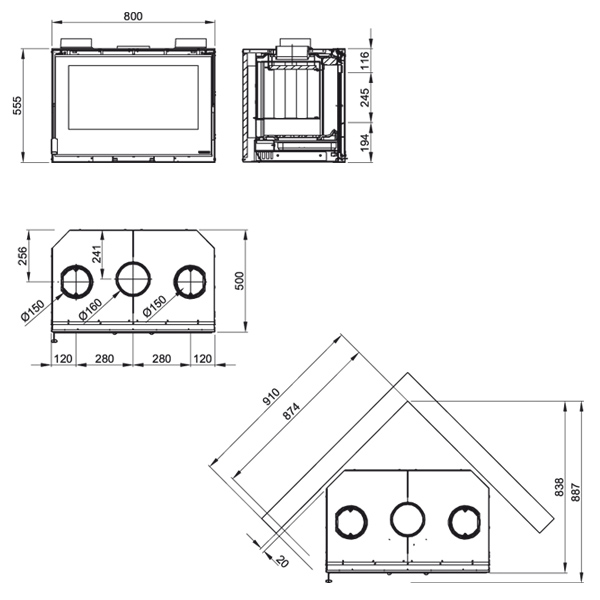

| Dimensions (WxHxD) | 800x555x500mm |
| Weight | 130kg |
| Door Opening (WxH) | 635x245mm |
| Hearth Dimensions (WxHxD) | 600x280x360mm |
| Heatable | 212m3 |
| Fumes Outlet | 160mm |
| Draught | 14Pa |
| Air Inlet | 120mm |
| Hearth material(s) | Cast Iron-Nordiker |
| Total Thermal Power | 8,8kW |
| Useful Thermal Power | 7,4kW |
| Efficiency | 83,9% |
| Consumption | 2,1 kg/h |
