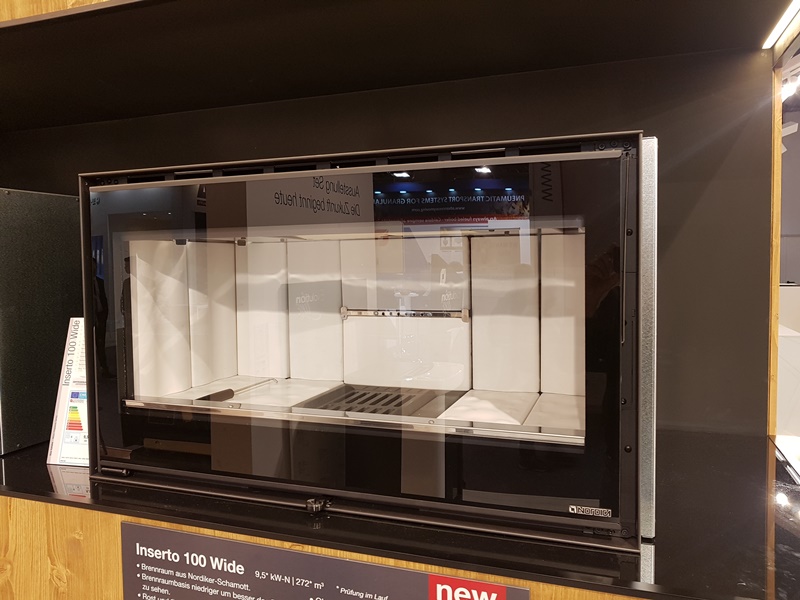

INSERTO 100 WIDE
8,1kW/232m3
Useful thermal power/Heatable Volume
La NORDICA-EXTRAFLAME Inserts: reliable. Practical, silent and ecological, they enable to heat wide areas in very short time.
Features:
- Extractable ash drawer
- Cast Iron Grid and Door G20
- Nordiker Firebox
- Reversible door opening
- Without fan ventilation (optional ventilation with Kit Wind Air)
- Low-floor fire plain for great flame vision
- Adjustable primary and secondary air, pre-calibrated tertiary
- post combustion system
- Combustion Air BBC
* Approval in progress
Technical Data
| Dimensions (WxHxD) | 1000x561x509mm |
| Weight | 178kg |
| Hearth Opening (WxH) | 826x278mm |
| Hearth Size (WxHxD) | 856x327x350mm |
| Heatable | 232m3 |
| Fumes Outlet | 160mm |
| Draught | 12Pa |
| Air inlet | 120mm |
| Hearth material | Nordiker |
| Total Thermal Power | 10,0kW |
| Useful Thermal Power | 8,1kW |
| Efficiency | 81% |
| Consumption | 2,3kg/h |
