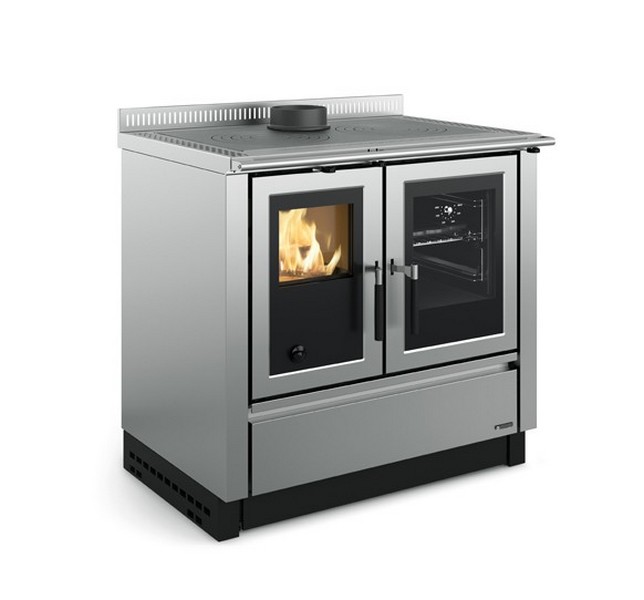

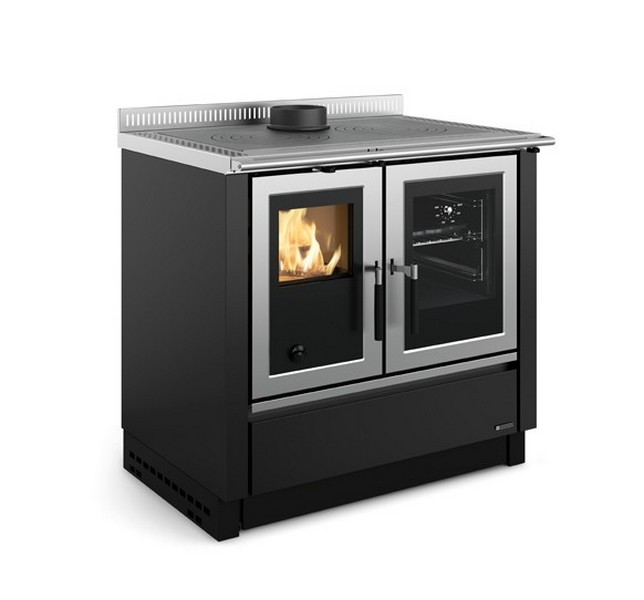

VENEZIA
8,0kW/229m3
Useful Thermal Power/Heated Volume
Insertable or free-standing wood burning cooker.
Features:
- Glass and brushed or enamelled stainless steel finish
- Extractable ash drawer
- Enameled cast iron facade
- Internal facing of the hearth in cast iron and refractory
- Top cooking plate and rings in polished cast-iron
- Cast iron fire door, oven door in enamelled steel
- Stainless steel frame
- Fire door with internal combustion air path for glass cleaning and efficiency
- Automatic adjustment of primary air
- Post combustion system (low emissions)
- Extractable wood drawer
- Oven with excess steam valve
- Porcelain enamelled steel oven 44 l with light
- Chromed oven rack with pull out guides
- Double glass oven door and stainless steel gaskets
- External air intake
- Ceramic glass
- Top thickness 3 cm
- Frontal handrail
- Fire door in cast iron with double glass
- Option of fitting between furniture cabinets
- Upper central, rear or right side smokes outlet
Technical Characteristics
| Dimensions (WxHxD) | 900x910x600mm |
| Weight | 180kg |
| Door opening (WxH) | 210x175mm |
| Hearth dimensions (WxHxD) | 226x270x384mm |
| Oven dimensions (WxHxD) | 310x286x410mm |
| Heatable | 229m3 |
| Fumes outlet | 150mm |
| Draught | 12Pa |
| Air inlet | 100mm |
| Hearth material | Cast-Iron+Nordiker |
| Total thermal power | 9,4kW |
| Useful thermal power | 8,0kW |
| Efficiency | 85,1% |
| Consumption | 2,5kg/h |
