Dante 8,8kW | NEW 2021

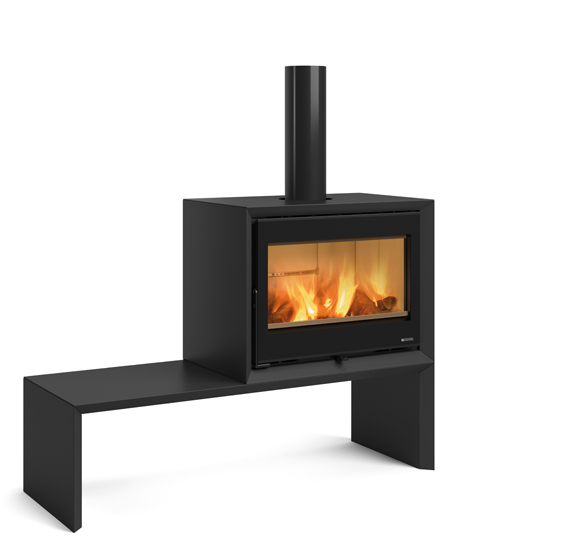

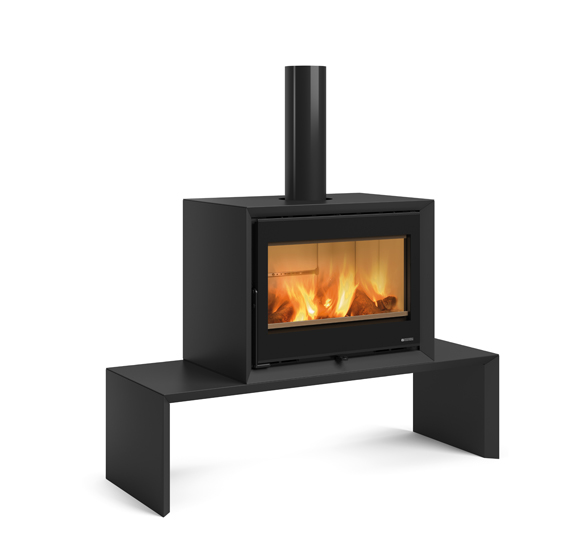

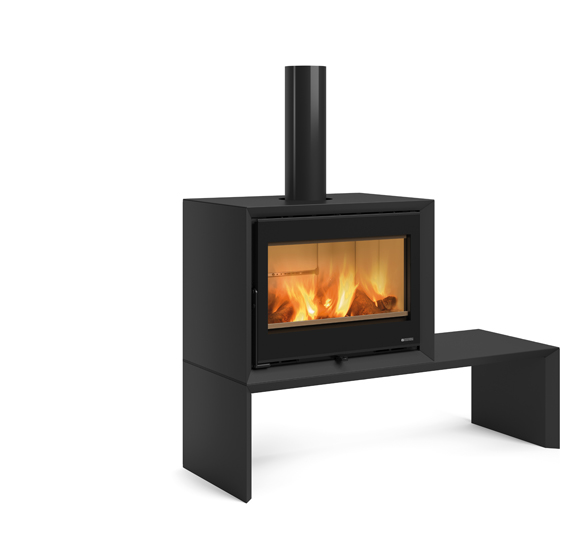

Structure covered in painted steel, available with lower log holder or with the horizontal bench (optional). External air intake. EPS system for heat recovery.

DANTE

8,8kW/252m³

Useful thermal power/Heated volume

Features:

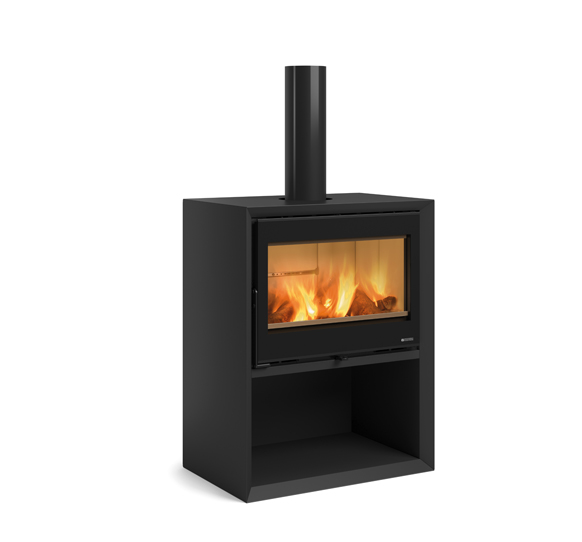

Structure covered in painted steel, available with lower log holder or with the horizontal bench (optional)
Extractable ash drawer
Internal facing of the hearth in Nordiker
Door and grille in cast iron
Adjustable primary and secondary air with a single draft device for a better combustion control
Post combustion system (low emissions)
External air intake
EPS system for heat recovery with enamelled pipe (O 150 H 500) with internal turbolator
Low-floor fire plain for great flame vision
Reversible door

Technical Data

Dimensions (WxHxD)	822x1055x550mm
Weight	158kg
Door opening (WxH)	626x278mm
Hearth dimensions (WxHxD)	652x295x350mm
Heatable	252m³
Fumes outlet	160mm
Draught	11Pa
Air inlet	100mm
Hearth material	Nordiker
Total thermal power	10,3kW
Useful thermal power	8,8kW
Efficiency	85,5%
Consumption	2,4kg/h
