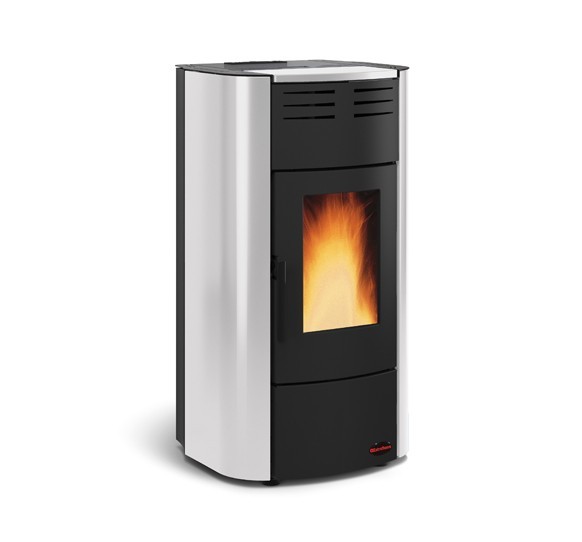

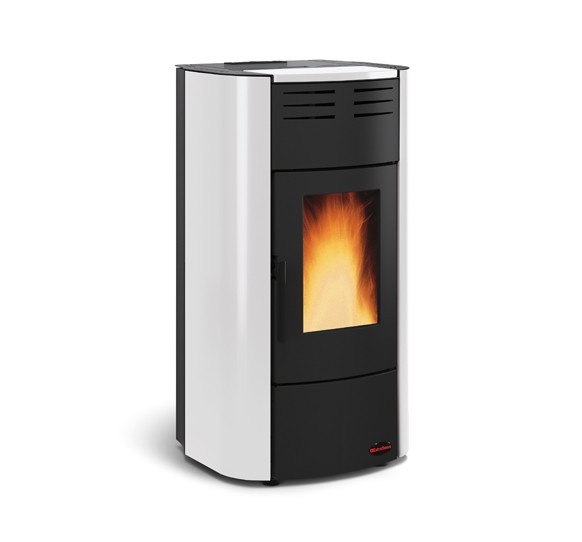

RAFFAELLA IDRO H15
5,4-18,1kW/519m3
Useful Thermal Power/Heated Volume
Ventilated pellet thermo-stove with painted steel covering.
Features:
- High temperature painted steel covering
- Frontal ventilation with deactivation possibility
- Ash drawer
- Heat exchanger with manual cleaning system
- Over heating Thermostat
- Internal thermostat
- Foreseen for external thermostat (TA)
- Weekly chronothermostat
- Remote Control
- Circulation pump
- Expansion tank
- Safety valve 3 bar
Technical Data
| Dimensions (WxHxD) | 633x1176x626mm |
| Weight | 215kg |
| Heatable | 519m3 |
| Fumes outlet | 100mm |
| Draught | 2-10Pa |
| Air Inlet | 50mm |
| Hydraulic Connections | 1" F |
| Boiler Content | 18,5lt |
| Total thermal power | 5,9-19,9kW |
| Useful thermal power | 5,4-18,1kW |
| Power given to water | 4,0-15,5kW |
| Efficiency | >91% |
| Consumption | 1,2-4,3kg/h |
| Pellet tank | ~35kg |
