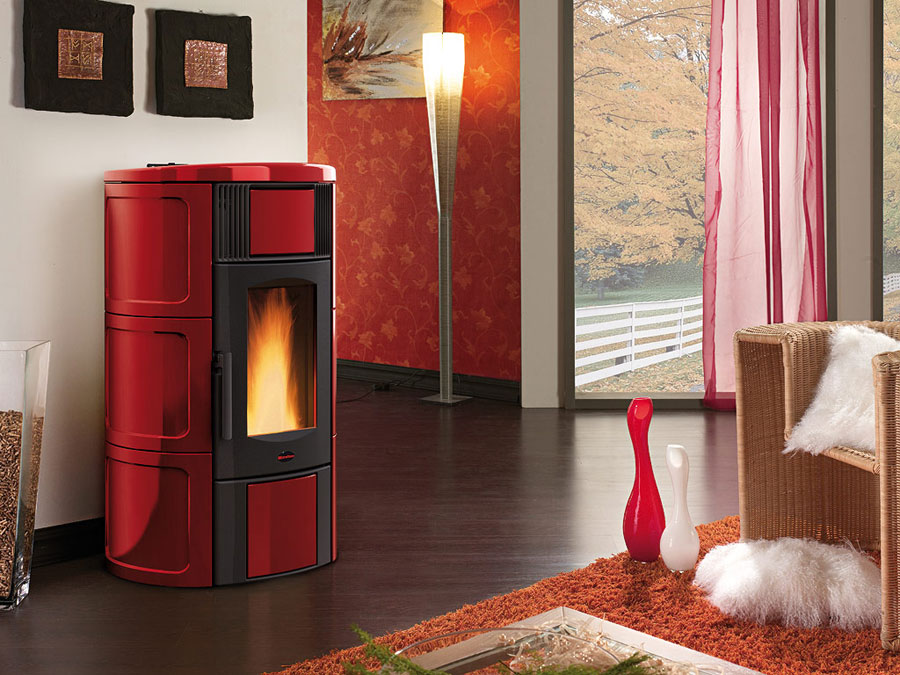

Iside Idro H15 19,0kW

Ventilated pellet thermo-stove with majolica covering. Ash box. 750° heat resisting ceramic glass. Circulation pump and expansion tank both built in. Heat exchanger with manual cleaning system. Frontal ventilation with deactivation possibility.

ISIDE IDRO H15

5,3-19,0kW/545m³

Useful Thermal Power/Heated Volume

Ventilated pellet thermo-stove with majolica covering.

Features:

Combustion chamber in thick steel
Fire door and brazier in cast iron
Shell and tube exchanger (manual cleaning)
Extractable ash drawer
Front room ventilation with dedicated motor, excludable
Thermal and pressure safety
Safety valve 3 bar
Expansion tank
Air relief valve
Pressure transducer and display pressure value indication
Wide fire vision
Ergonomic handle
Output smoke outlet possibilities: rear
Display Black LCD

Technical Data

Dimensions (WxHxD)	690x1196x628mm
Weight	255kg
Heatable	545m³
Fumes outlet	100mm
Draught	2-10Pa
Air Inlet	50mm
Hydraulic Connection	1" F
Boiler Content	56lt
Total thermal power	5,8-20,7kW
Useful thermal power	5,4-19,0kW
Power given to water	4,3-15,5kW
Efficiency	92,8-94,3%
Consumption	1,2-4,0kg/h
Pellet Tank	35kg
