Bild Air Tight C 9,1kW

BILD AIR TIGHT C

9,1kW/235m³

Useful Thermal Power/Heatable Volume

Suitable for modern passive houses

• Smoke outlet upper O 8/13 cm coaxial
• Cast iron combustion chamber
• Leonardo system
• Daily/weekly program
• 1 rear hot air duct, O 8 cm,
  Fans separate settings through remote control
• 2 independent fans
• Handle Fit (optional)
• Remote control

Glass front with inserts:

• Matt white ceramic

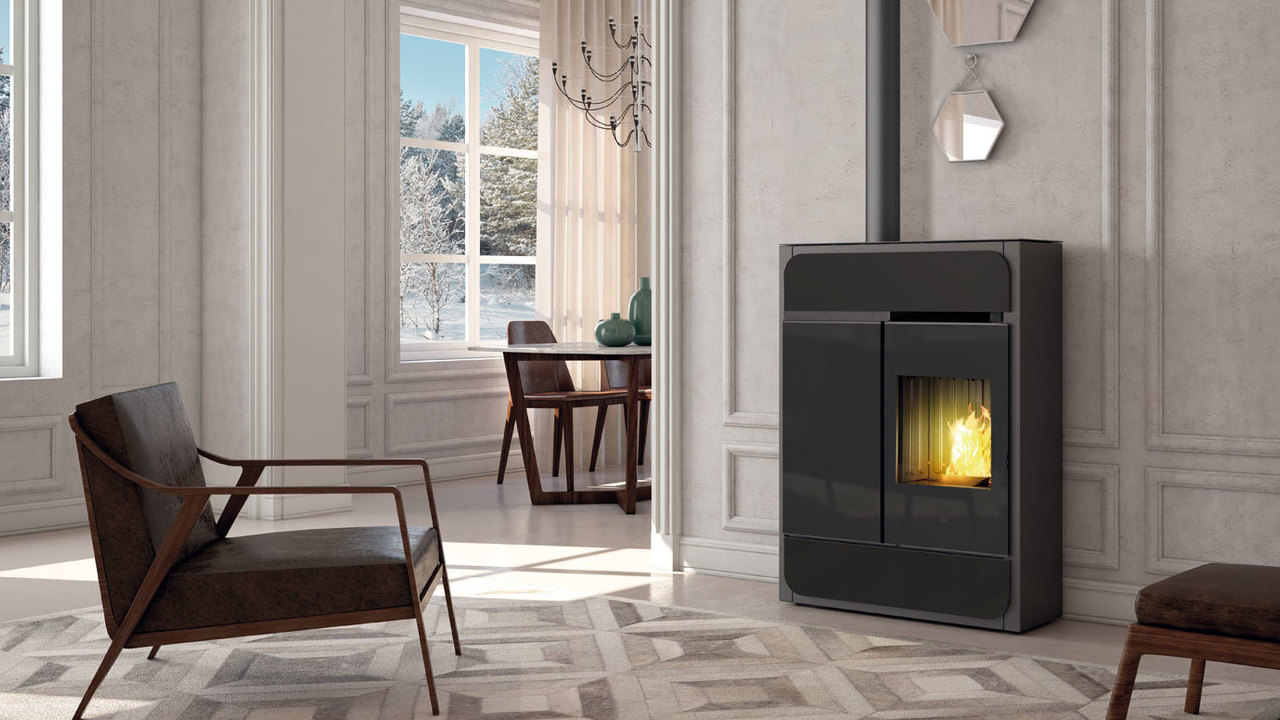

• Black ceramic

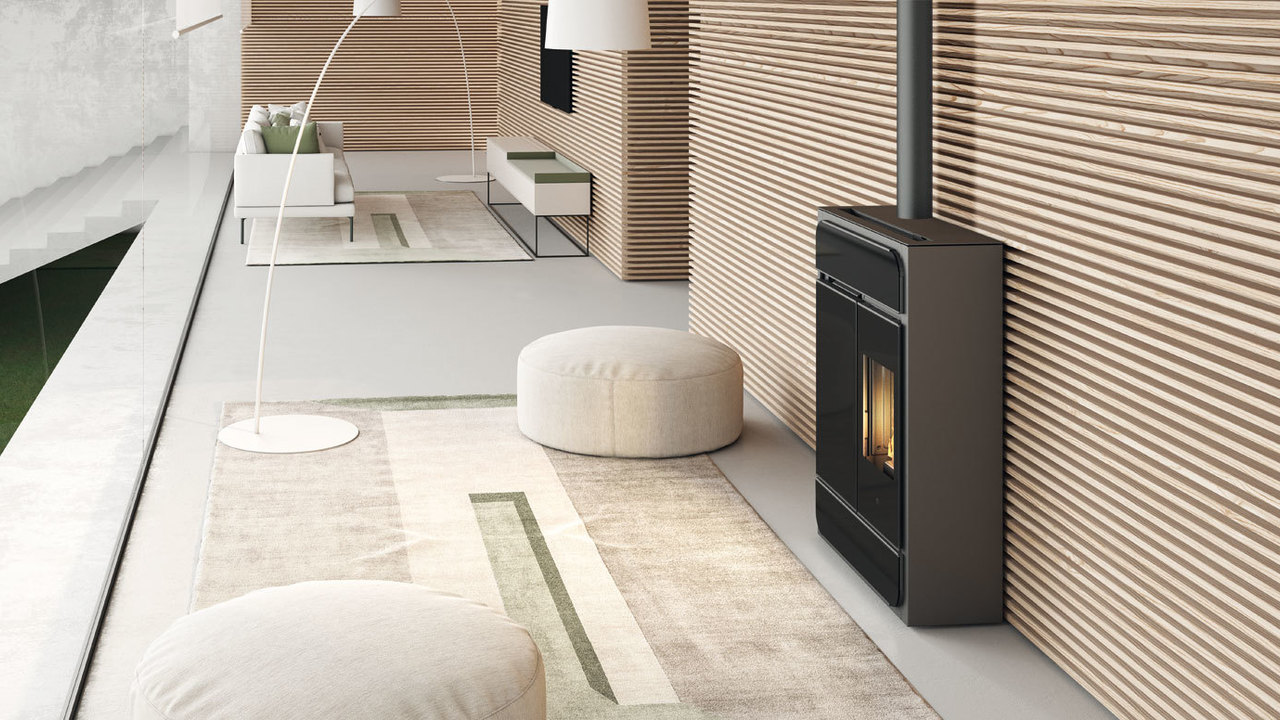

• Black glass

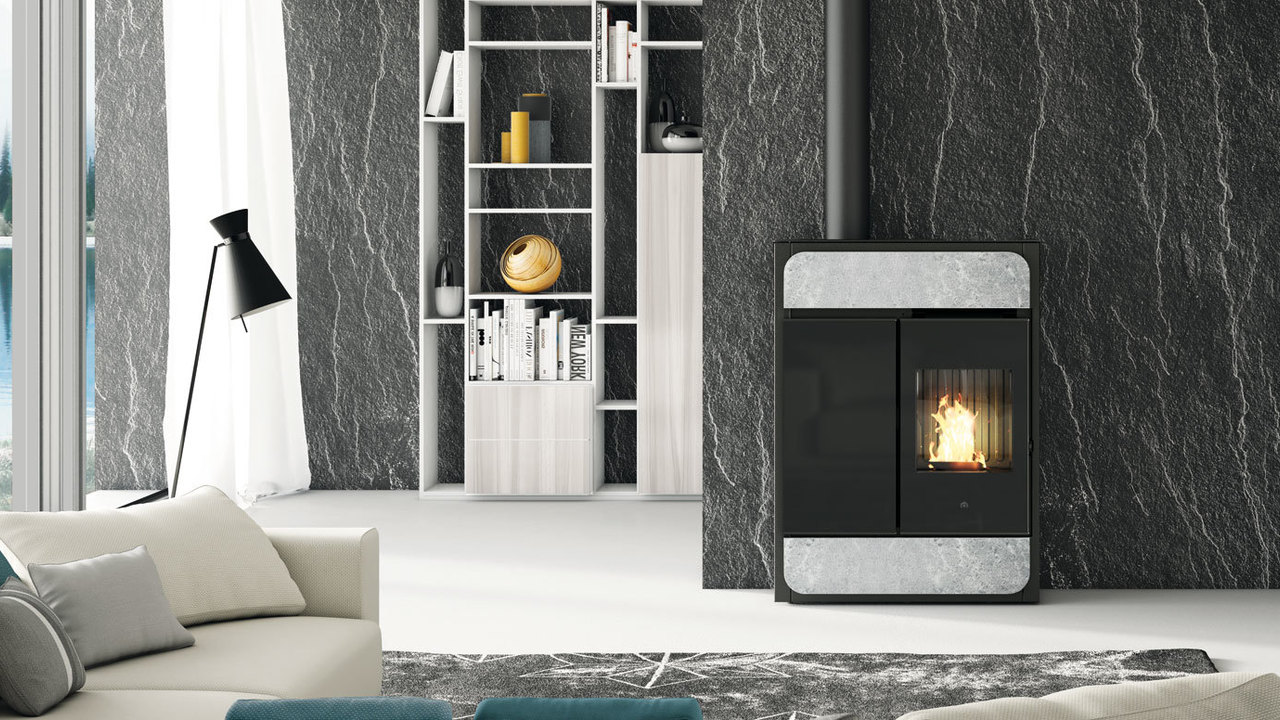

• Soapstone

Technical Characteristics

Dimensions (WxDxH)	800x300x1110mm
Weight	130kg
Heatable	235m3
Fumes outlet	80-130mm
Total thermal power	10,2kW
Useful thermal power	9,1kW
Efficiency	89,0%
Consumption	1-2,1kg/h
Pellet Tank	~22kg

OPTIONAL:

• kit Wi-fi, allows for switching the stove on/off via wireless internet connection
• kit GSM, allows for switching the stove on/off via mobile phone (SIM card required)
• Ducting vents Split, Bent, Sharp, Origami
• Choice to fit an optional room probe for the ducted fan handling.
