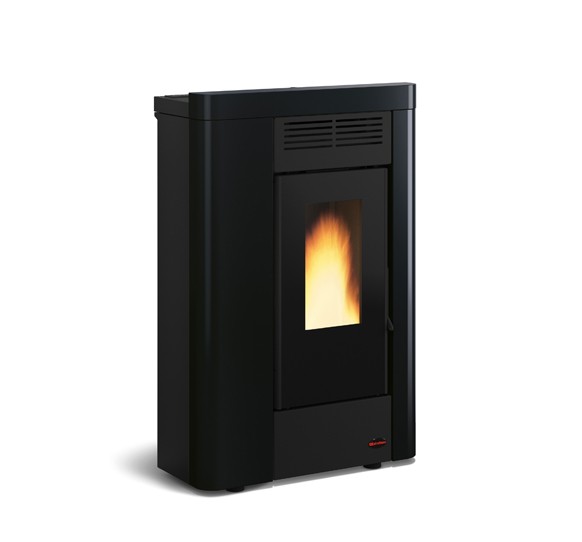

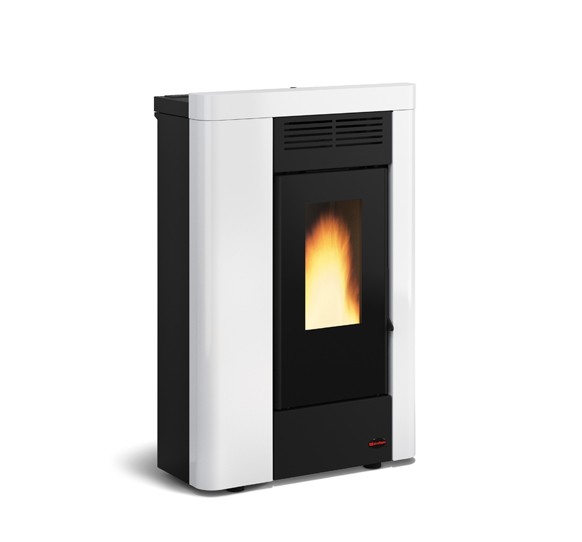

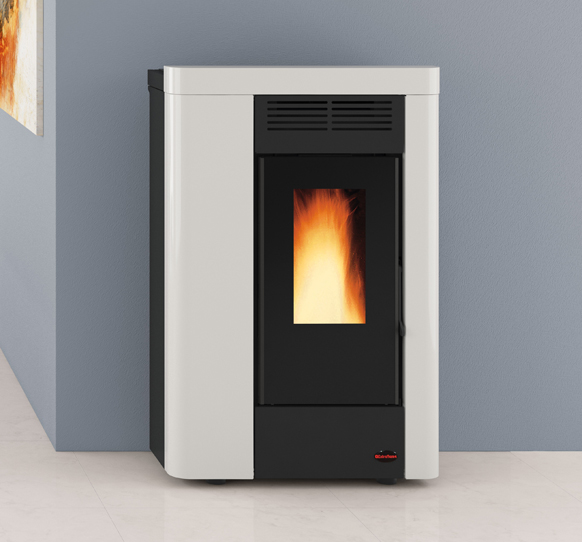

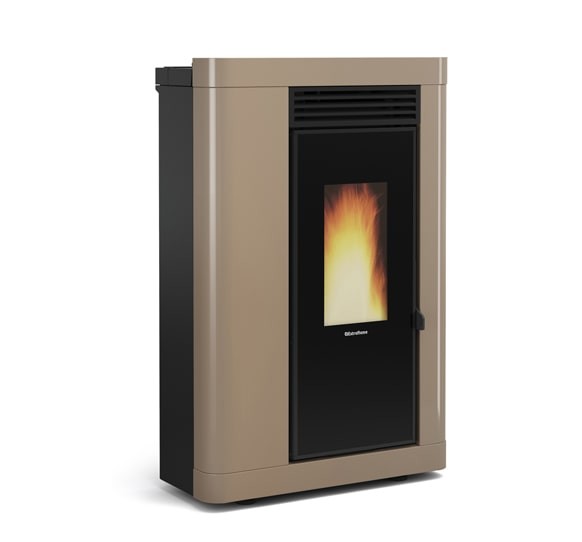

ANABELLA
3,4-9,0kW/258m3
Useful thermal power/Heated Volume
"Slim" pellet stove, with ducting system and with painted steel covering.
Features:
- Cast iron door, hearth and brazier
- Side shell and tube heat exchanger (manual cleaning)
- Front room ventilation / ducting up to 6 metres, which can be diverted manually
- Ducting outlet options (O80 mm): rear, upper, right-hand side
- Reduced depth
- Smoke discharge outlet option: rear, upper, right-hand side
- The hearth can be removed by authorised service personnel
- Easy Setup
- Easy Control
- Self Control
Technical Data
| Dimensions (WxHxD) | 703x1078x343mm |
| Weight | 132kg |
| Heatable | 258m3 |
| Fumes outlet | 80mm |
| Draught | 1-10Pa |
| Air Inlet | 50mm |
| Ducting Outlet | 80mm |
| Total thermal power | 3,6-9,8kW |
| Useful thermal power | 3,4-9,0kW |
| Efficiency | 93,5-91,9% |
| Consumption | 0,8-2,0kg/h |
| Pellet tank | ~14kg |
