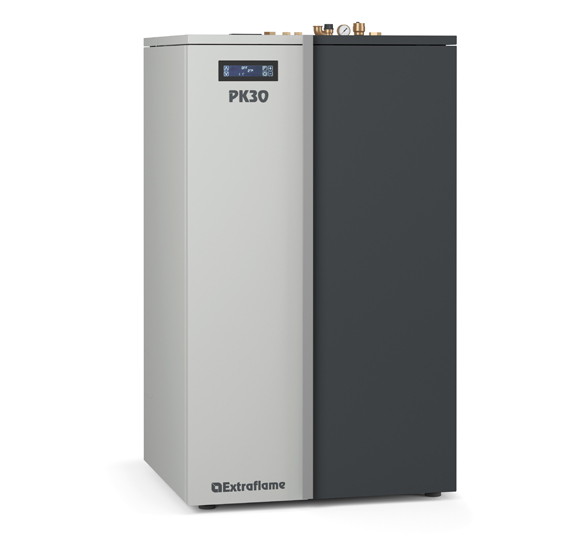

PK30
30,0kW/860m3
Useful Thermal Power/Heated Volume
Features:
- Combustion chamber in thick steel
- Fire door and brazier in cast iron
- Shell and tube exchanger with automatic cleaning
- Extractable ash drawer
- Front pellet tank feeding
- Self-cleaning burn pot (Brushless motor)
- Ceramic igniter
- Circulator with PWM control
- Brushless gearbox for pellet feeding
- Minimum pellet tank level probe
- Combustion chamber probe
- Thermal and pressure safety
- Safety valve 3 bar
- Expansion tank
- Air relief valve
- Output smoke outlet possibilities: rear, left lateral
- Hydraulic connections at the top
- Wheels to facilitate movement
- Innovative adaptive system to adjust and even the combustion air inlet
- Display black mask with Wifi module (Only for App “Total Control 2.0”)
Technical Data
| Dimensions (WxDxH) | 892x745x1398mm |
| Weight | 310kg |
| Heatable | 860m3 |
| Fumes Outlet | 100mm |
| Boiler Content | 119lt |
| Total thermal power | 6,5-21,6kW |
| Useful thermal power | 8,9-30,0kW |
| Efficiency | 92,7-92,4% |
| Consumption | 2,0-6,8kg/h |
| Pellet Tank | 75kg |
