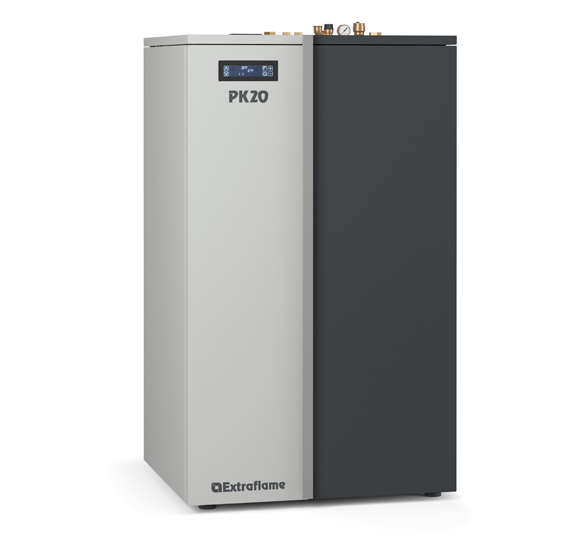

PK20

20,0kW/573m3

Useful Thermal Power/Heated Volume

 Features:

  • Combustion chamber in thick steel
  • Fire door and brazier in cast iron
  • Shell and tube exchanger with automatic cleaning
  • Extractable ash drawer
  • Front pellet tank feeding
  • Self-cleaning burn pot (Brushless motor)
  • Ceramic igniter
  • Circulator with PWM control
  • Brushless gearbox for pellet feeding
  • Minimum pellet tank level probe
  • Combustion chamber probe
  • Thermal and pressure safety
  • Safety valve 3 bar
  • Expansion tank
  • Air relief valve
  • Output smoke outlet possibilities: rear, left lateral
  • Hydraulic connections at the top
  • Wheels to facilitate movement
  • Innovative adaptive system to adjust and even the combustion air inlet
  • Display black mask with Wifi module (Only for App “Total Control 2.0”)

Technical Data

Dimensions (WxDxH) 822x745x1385mm
Weight 295kg
Heatable 430m3
Fumes Outlet 100mm
Boiler Content 119lt
Total thermal power 6,5-21,6kW
Useful thermal power 5,7-20,0kW
Efficiency 88,4-92,4%
Consumption kg/h
Pellet Tank 75kg
